Azure Monitor & Log Analytics

Project Category	Cloud Monitoring
Platform	Microsoft Azure
Core Technologies	Azure Monitor, Log Analytics, KQL, Alerts
Project Focus	Centralized monitoring, log analysis, and alerting

Project Overview

Implemented centralized monitoring for an Azure virtual machine using Azure Monitor, Log Analytics, the Azure Monitor Agent, Data Collection Rules, KQL queries, and alert notifications.

1. Business Scenario

The environment required a central view of health and performance instead of checking each resource manually. Logs, metrics, and alerts were consolidated so operational issues could be detected and investigated quickly.

2. Project Objectives

• Connect a virtual machine to Log Analytics.
• Deploy the Azure Monitor Agent and Data Collection Rule.
• Query heartbeat, CPU, memory, and disk data with KQL.
• Create metric alerts and an Action Group.
• Validate log collection and alert delivery.

3. Azure Resources Created

Resource Type	Resource Name
Resource Group	vm-monitor-01_group
Virtual Machine	vm-monitor-01
Virtual Network	vnet-eastus2-1
Network Security Group	vm-monitor-01-nsg
Network Interface	vm-monitor-01482
Public IP Address	vm-monitor-01-ip
Azure Monitor Agent	Azure Monitor Agent (AMA)
Data Collection Rule	dcr-monitor-01
Log Analytics Workspace	law-monitor-01
Alert Rule	High-CPU-Alert
Action Group	VMI-ActionGroup-vm-monitor-01

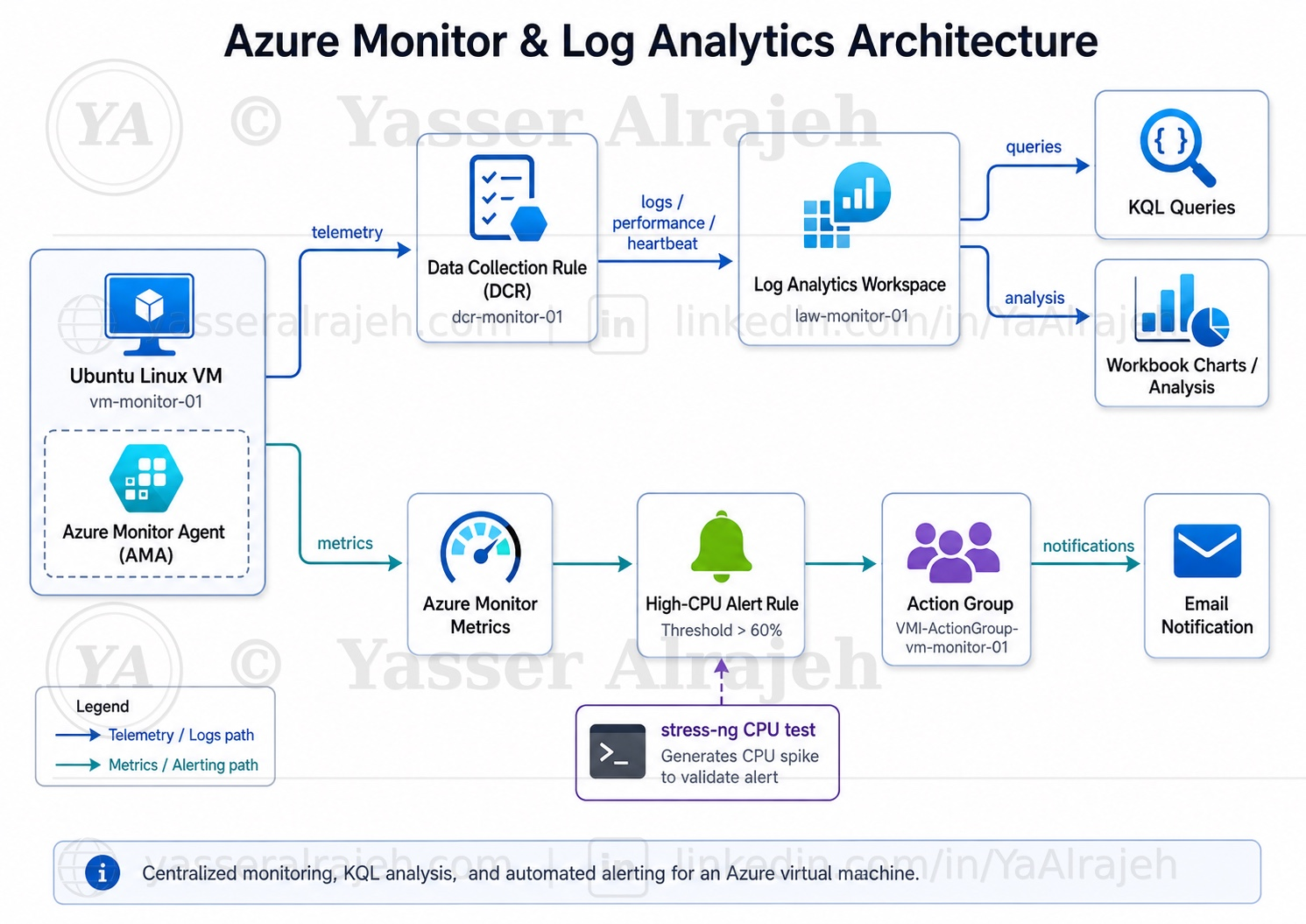

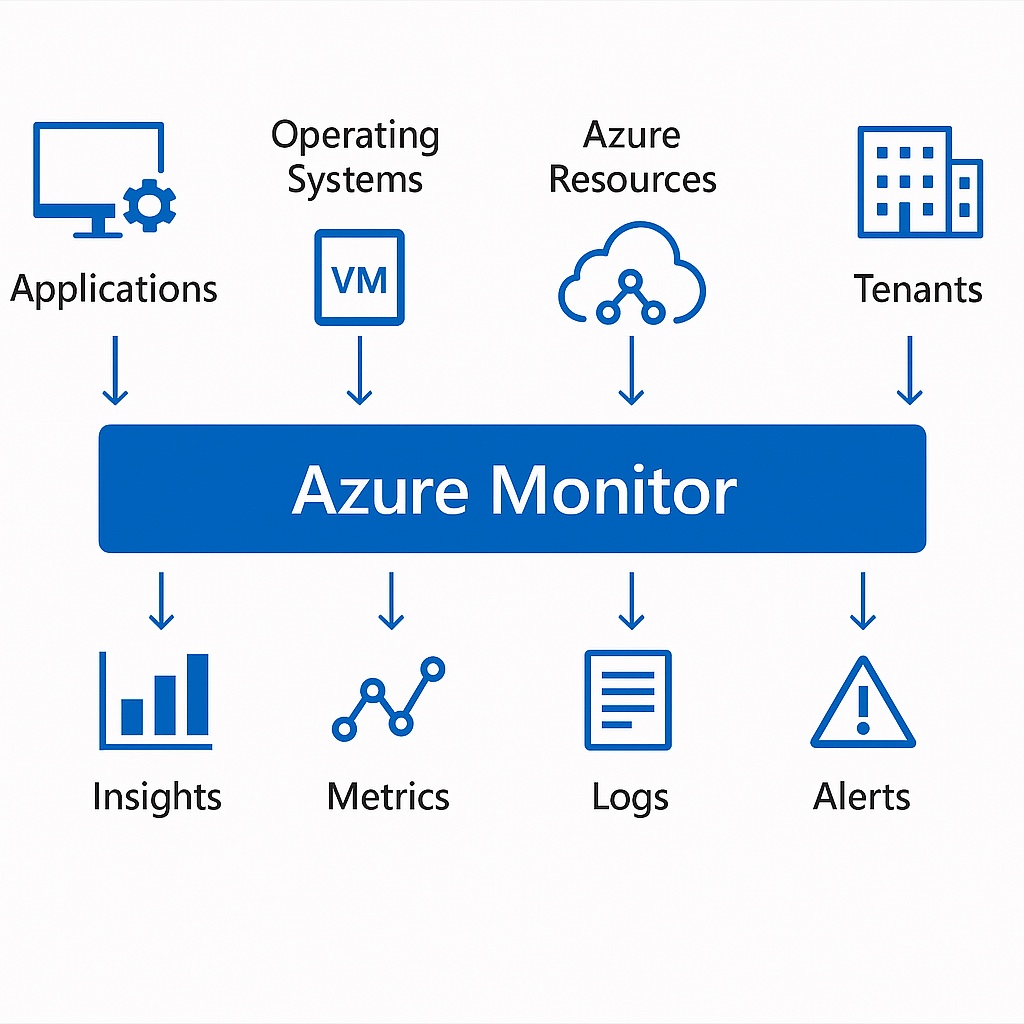

4. Solution Architecture

5. Implementation

5.1 Deploy Ubuntu Virtual Machine

A Linux virtual machine running Ubuntu Server was deployed in Microsoft Azure and configured for secure remote administration using SSH.

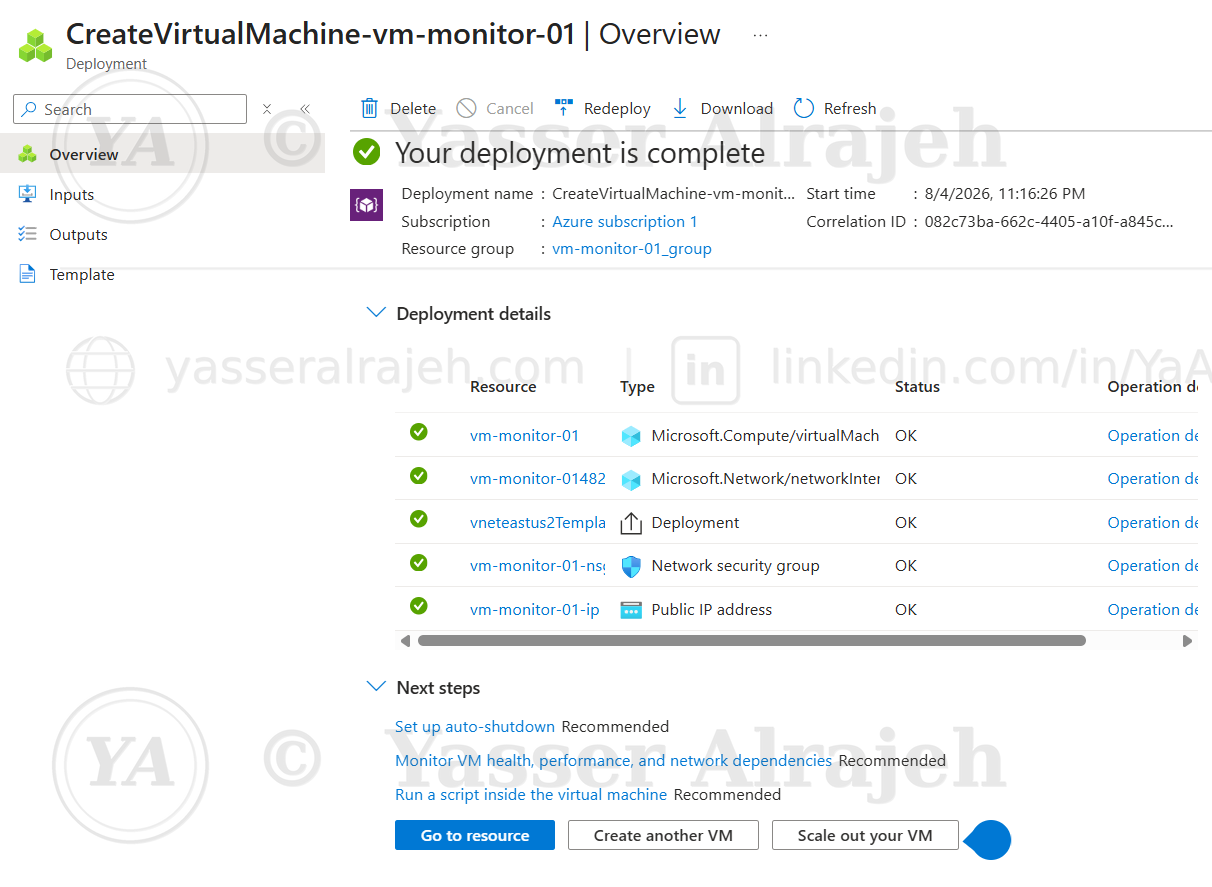

Deployment of vm-monitor-01 completed successfully inside vm-monitor-01_group.

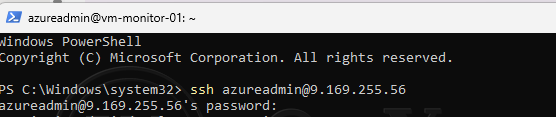

Secure SSH connection established to the Ubuntu virtual machine.

5.2 Configure Azure Monitor

Azure Monitor was enabled to provide infrastructure monitoring for the virtual machine.

VM Insights was configured to monitor:

• CPU utilization

• Memory utilization

• Disk activity

• VM availability

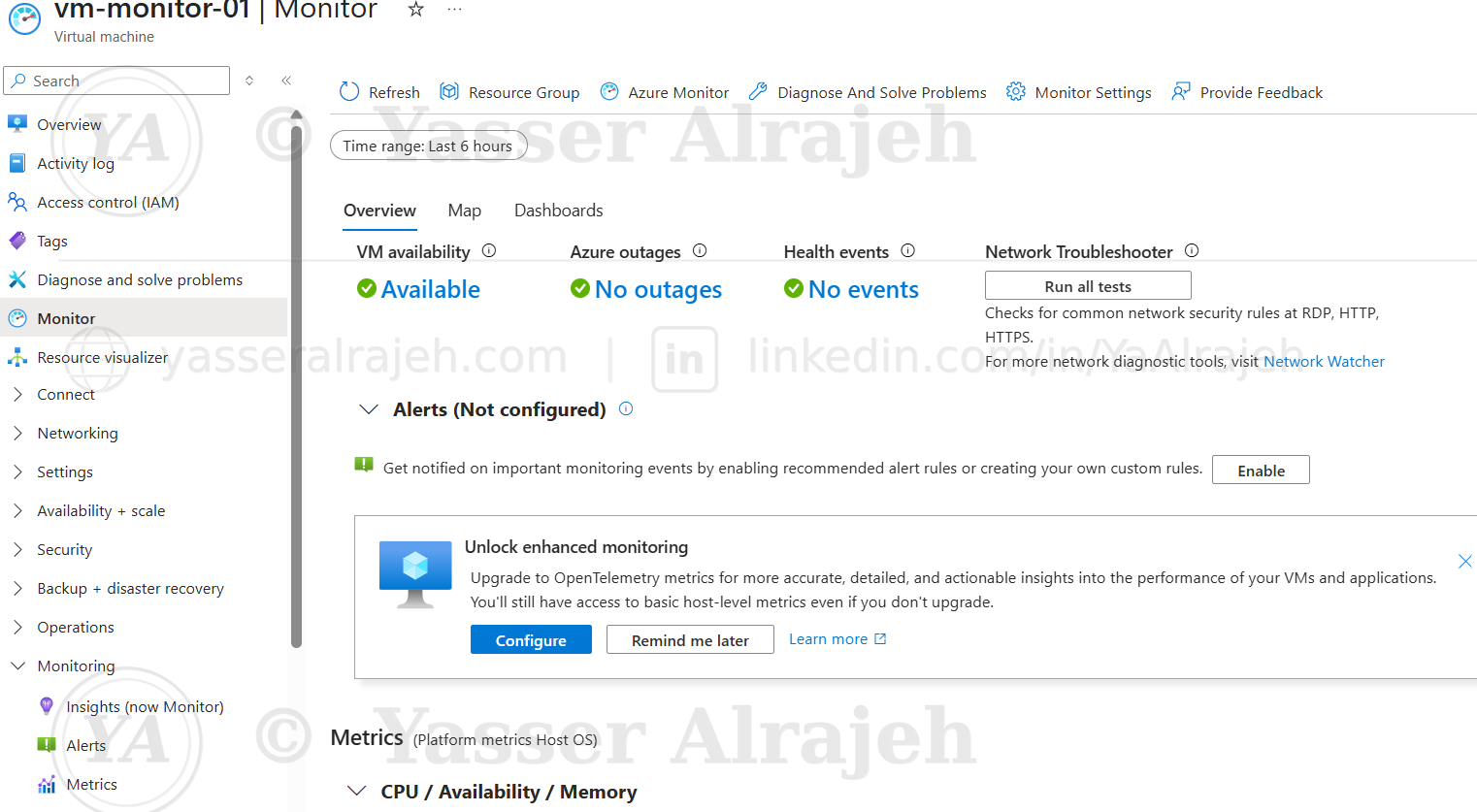

Azure Monitor blade for vm-monitor-01 after enabling monitoring.

5.3 Install Azure Monitor Agent

Azure Monitor Agent (AMA) was installed on the Ubuntu virtual machine.

The agent continuously collects system performance metrics and operational telemetry from the operating system.

5.4 Configure Data Collection Rule

A Data Collection Rule (DCR) was configured to define which monitoring data should be collected.

Collected telemetry included:

• Performance Metrics

• VM Insights Data

• Heartbeat Monitoring

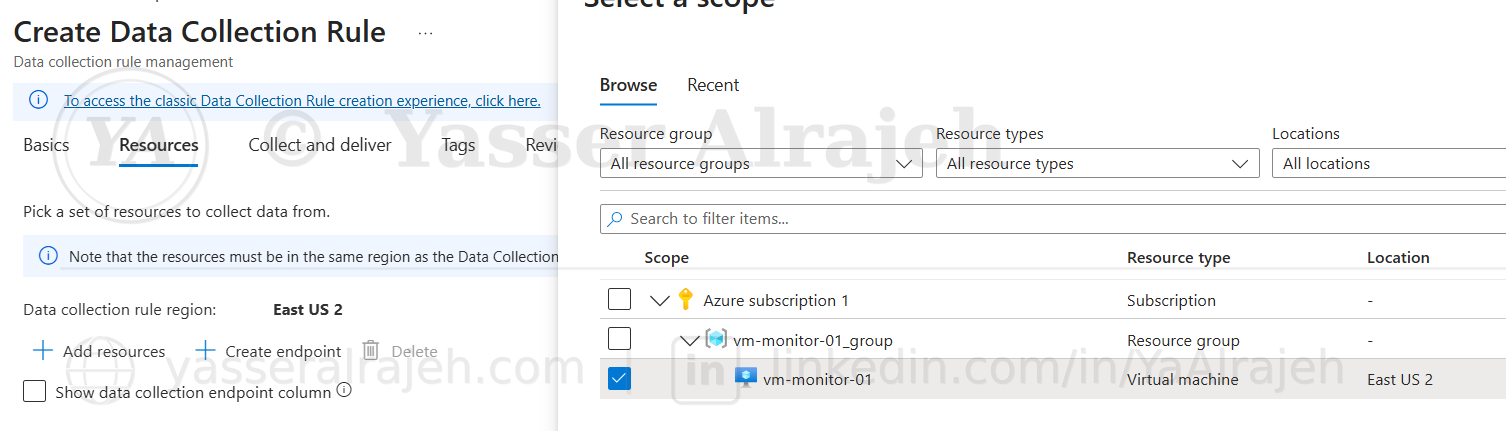

Scoping the Data Collection Rule to vm-monitor-01 within vm-monitor-01_group.

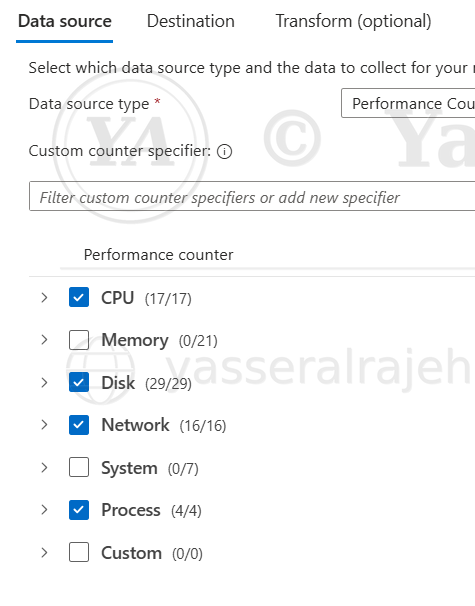

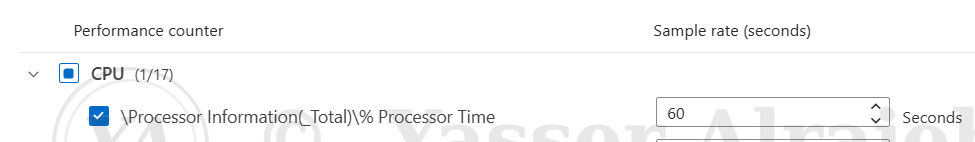

Selecting performance counter categories: CPU, Disk, Network and Process.

CPU counter — Processor Time sampled every 60 seconds.

Memory counters — Available MBytes and % Available Memory.

Logical Disk counter — % Free Space.

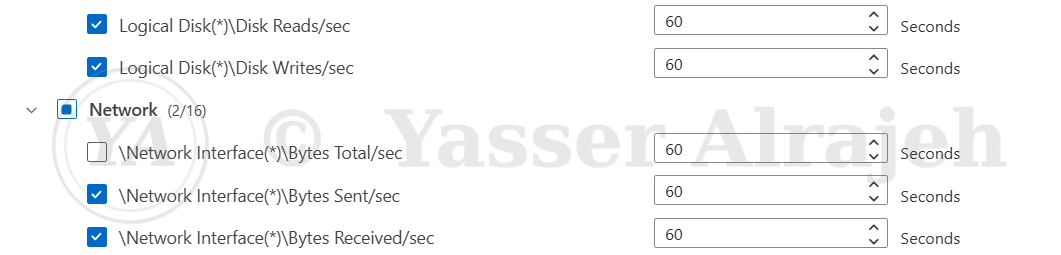

Disk Reads/Writes per second and Network Interface counters.

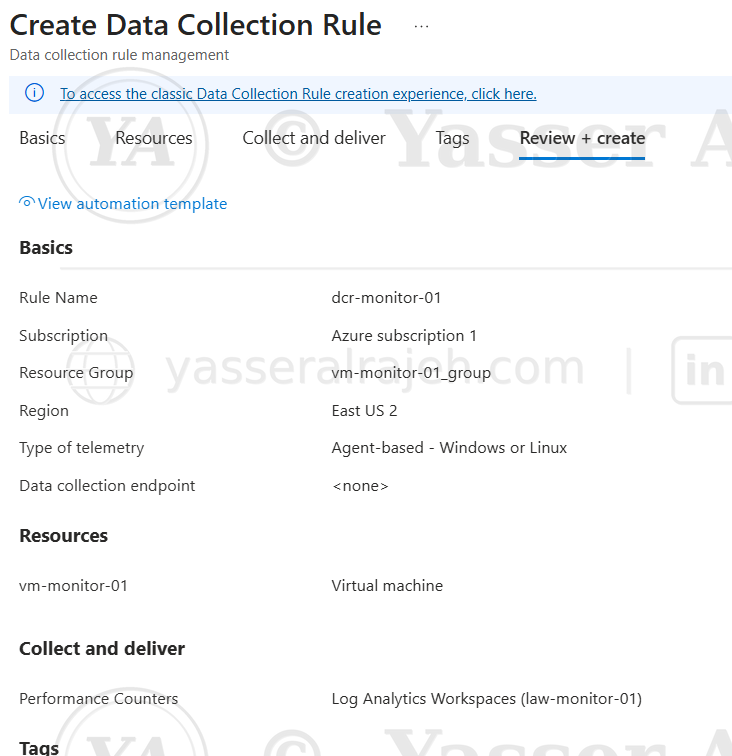

Review + create summary for Data Collection Rule dcr-monitor-01.

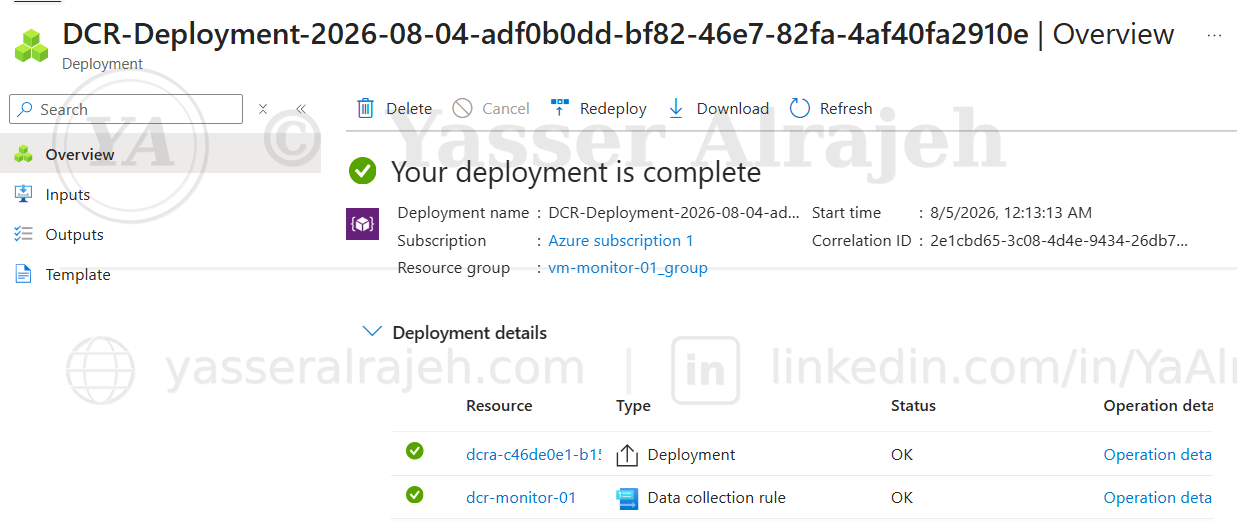

Data Collection Rule deployment completed successfully.

5.5 Configure Log Analytics Workspace

The virtual machine was connected to Log Analytics Workspace to enable centralized storage, querying, and analysis of monitoring data.

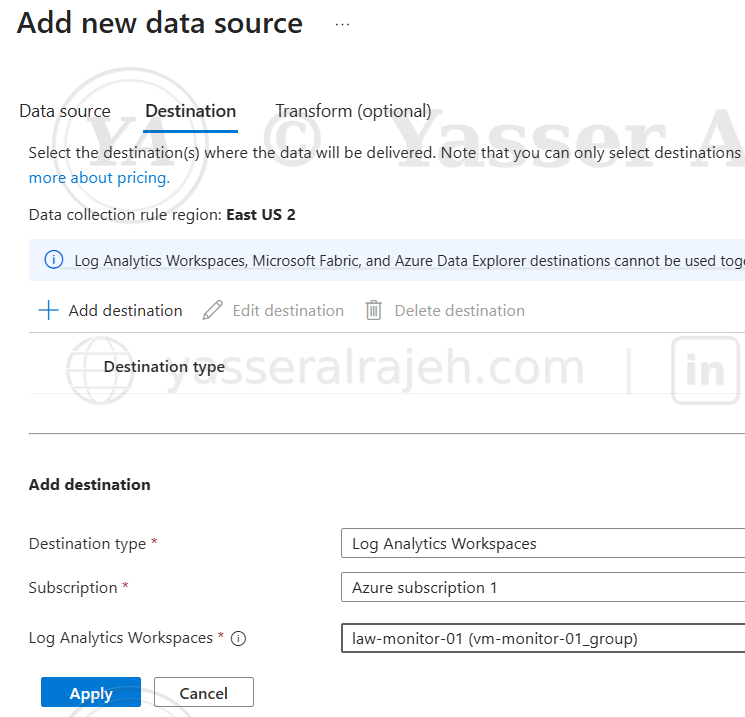

Data Collection Rule destination configured to Log Analytics Workspace law-monitor-01.

5.6 Monitor Virtual Machine Performance

Real-time monitoring was successfully enabled for:

• CPU utilization

• Memory utilization

• Disk activity

• VM heartbeat

Performance data was continuously collected and displayed within Azure Monitor.

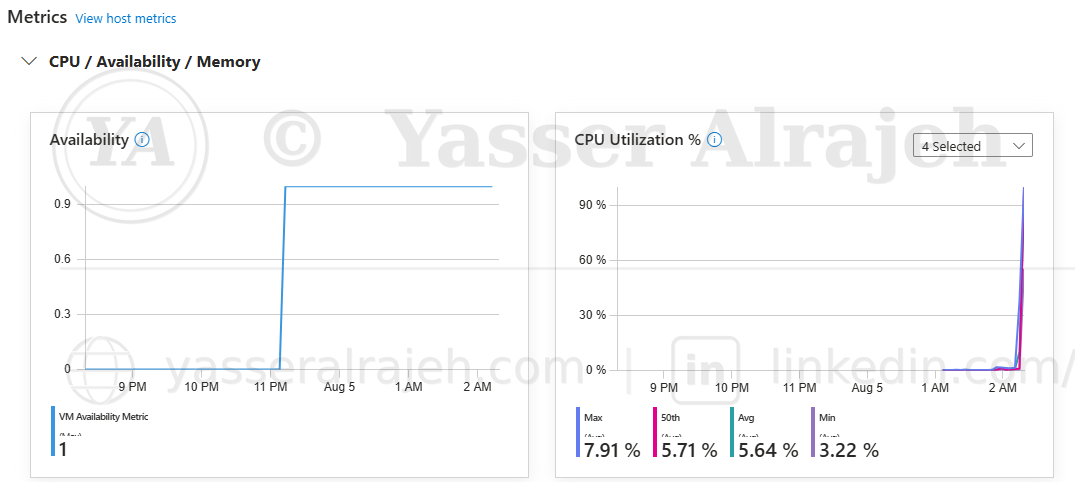

VM availability and CPU utilization metrics.

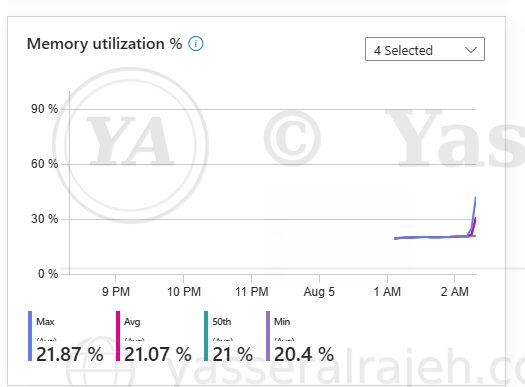

Memory utilization percentage over time.

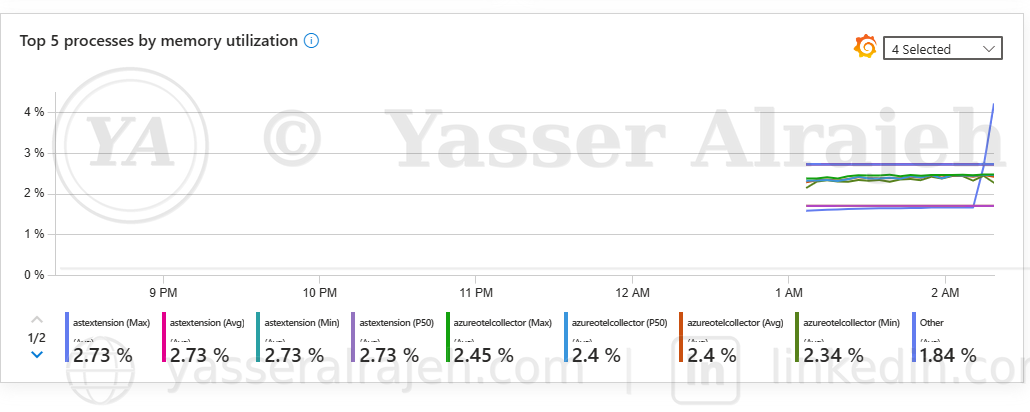

Top 5 processes by memory utilization.

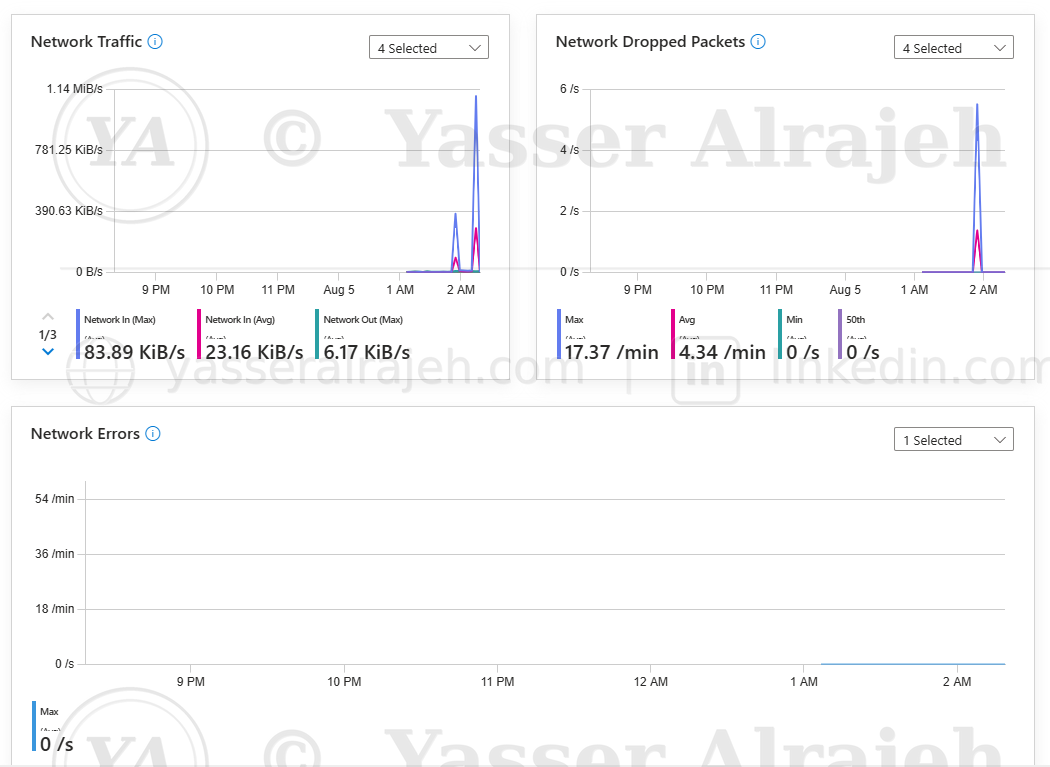

Network traffic, dropped packets, and network errors.

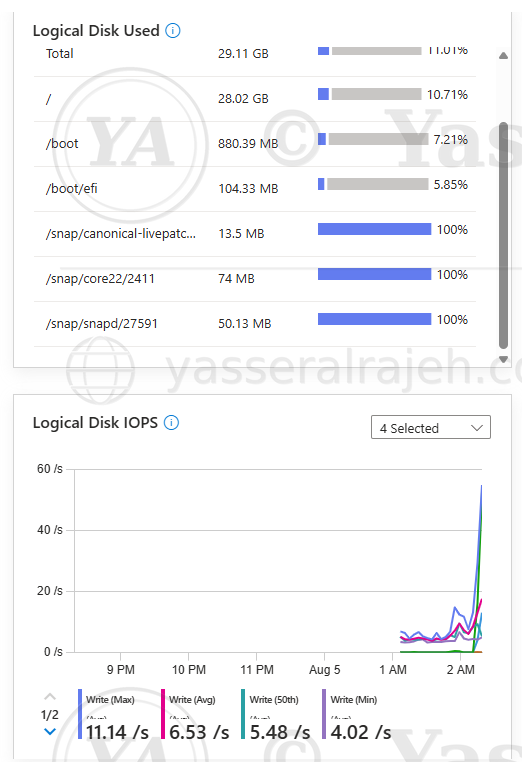

Logical disk usage and disk IOPS.

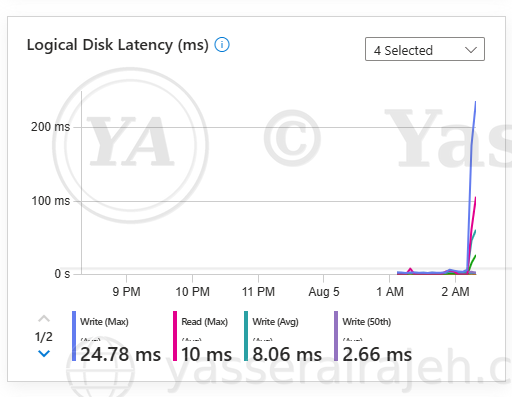

Logical disk latency (ms).

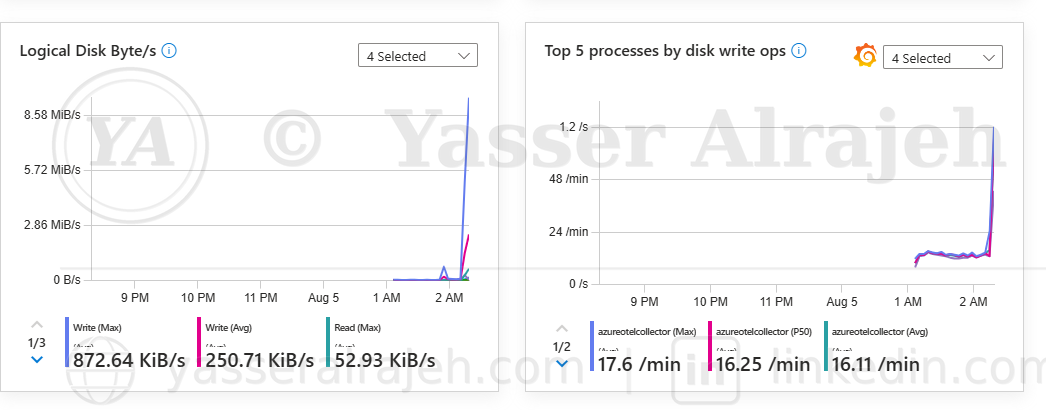

Logical disk throughput and top 5 processes by disk write operations.

6. Kusto Query Language (KQL)

Monitoring data was analyzed using Kusto Query Language (KQL).

6.1 Heartbeat Monitoring

Heartbeat
| where Computer == "vm-monitor-01"
| sort by TimeGenerated desc

This query verifies that the virtual machine continuously reports its operational status.

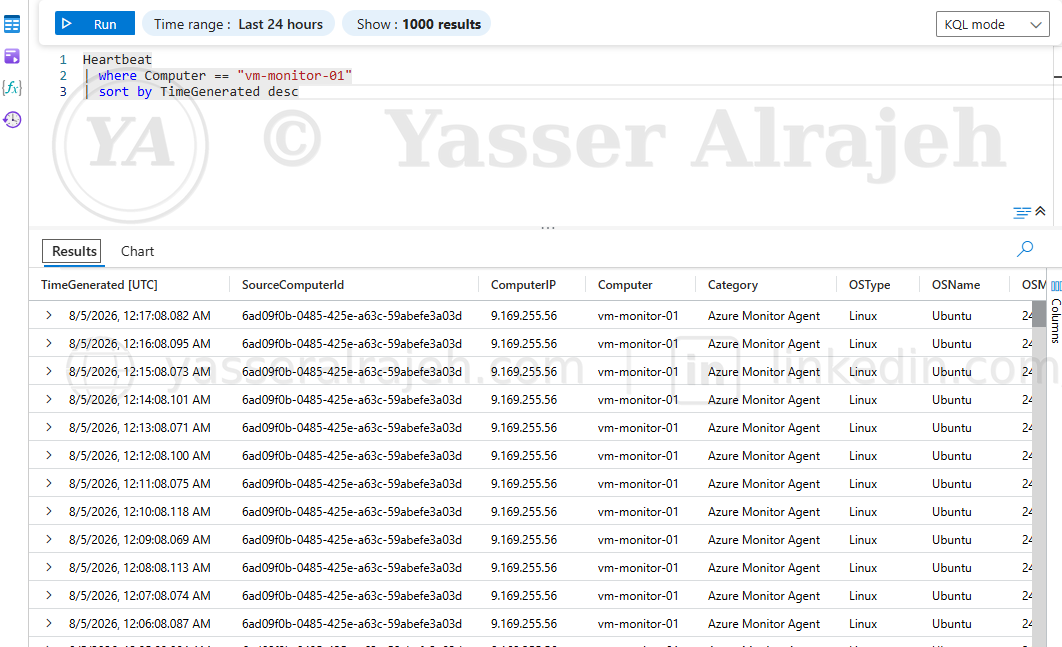

Heartbeat query results confirming continuous agent reporting.

6.2 CPU Utilization

InsightsMetrics
| where TimeGenerated > ago(30m)
| where Namespace == "Processor"
| where Name == "UtilizationPercentage"
| summarize AvgCPU = avg(Val) by bin(TimeGenerated, 1m)
| render timechart

This query visualizes processor utilization over time.

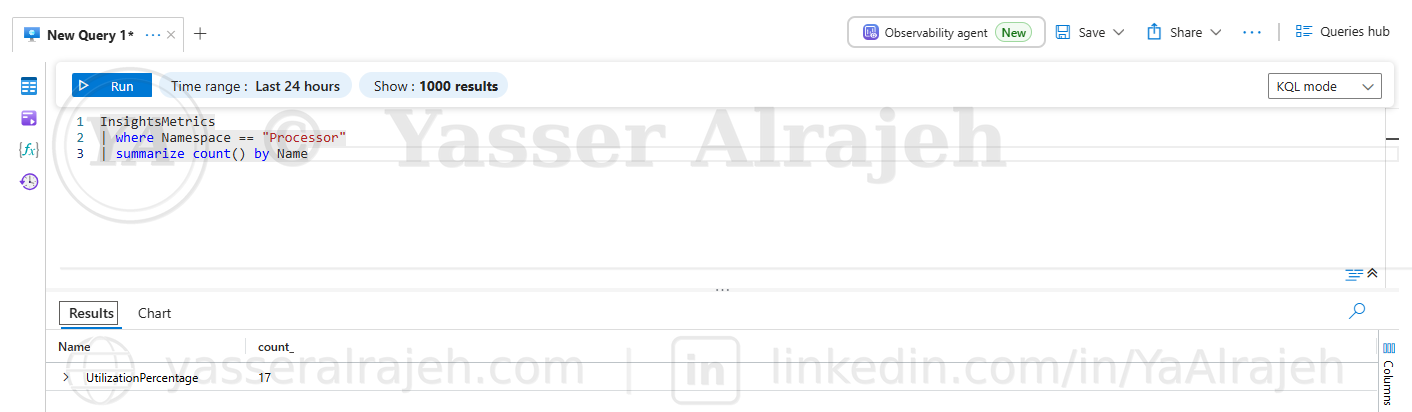

Confirming the UtilizationPercentage metric exists under the Processor namespace.

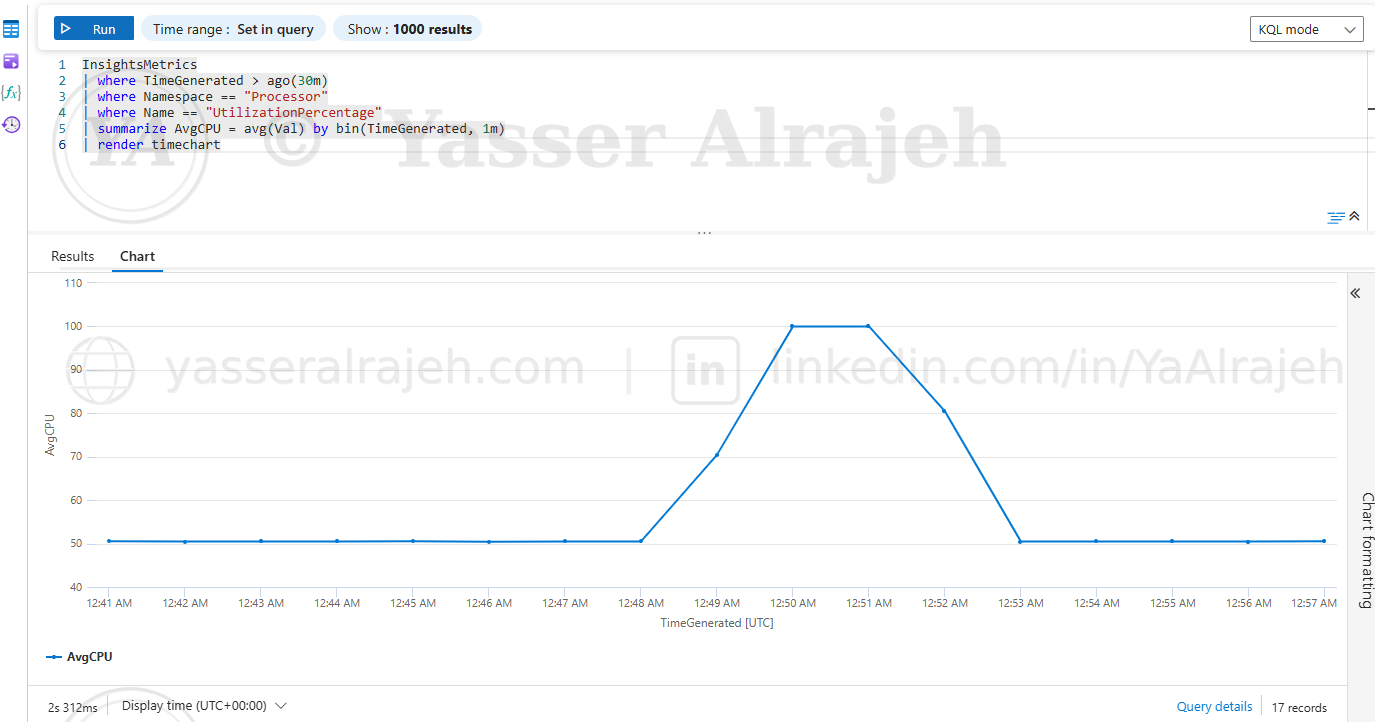

CPU utilization time chart generated from the KQL query.

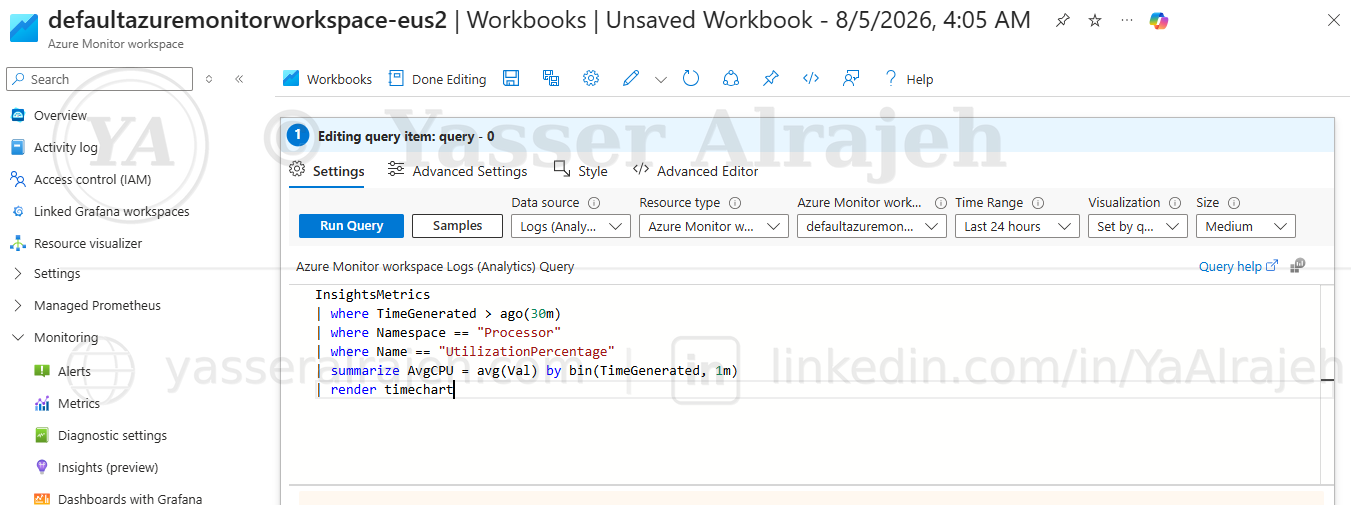

Query saved as a chart inside an Azure Monitor Workbook for dashboarding.

6.3 Memory Performance

Perf
| where TimeGenerated > ago(30m)
| where ObjectName == "Memory"
| summarize AvgMemory = avg(CounterValue) by bin(TimeGenerated, 1m)
| render timechart

This chart displays memory performance collected from the Ubuntu virtual machine.

6.4 Disk Read Performance

Perf
| where TimeGenerated > ago(30m)
| where ObjectName == "Logical Disk"
| where CounterName == "Disk Reads/sec"
| summarize AvgReads = avg(CounterValue) by bin(TimeGenerated, 1m)
| render timechart

This chart visualizes disk read operations over time.

6.5 Disk Write Performance

Perf
| where TimeGenerated > ago(30m)
| where ObjectName == "Logical Disk"
| where CounterName == "Disk Writes/sec"
| summarize AvgDiskWrites = avg(CounterValue) by bin(TimeGenerated, 1m)
| render timechart

This chart visualizes disk write operations over time.

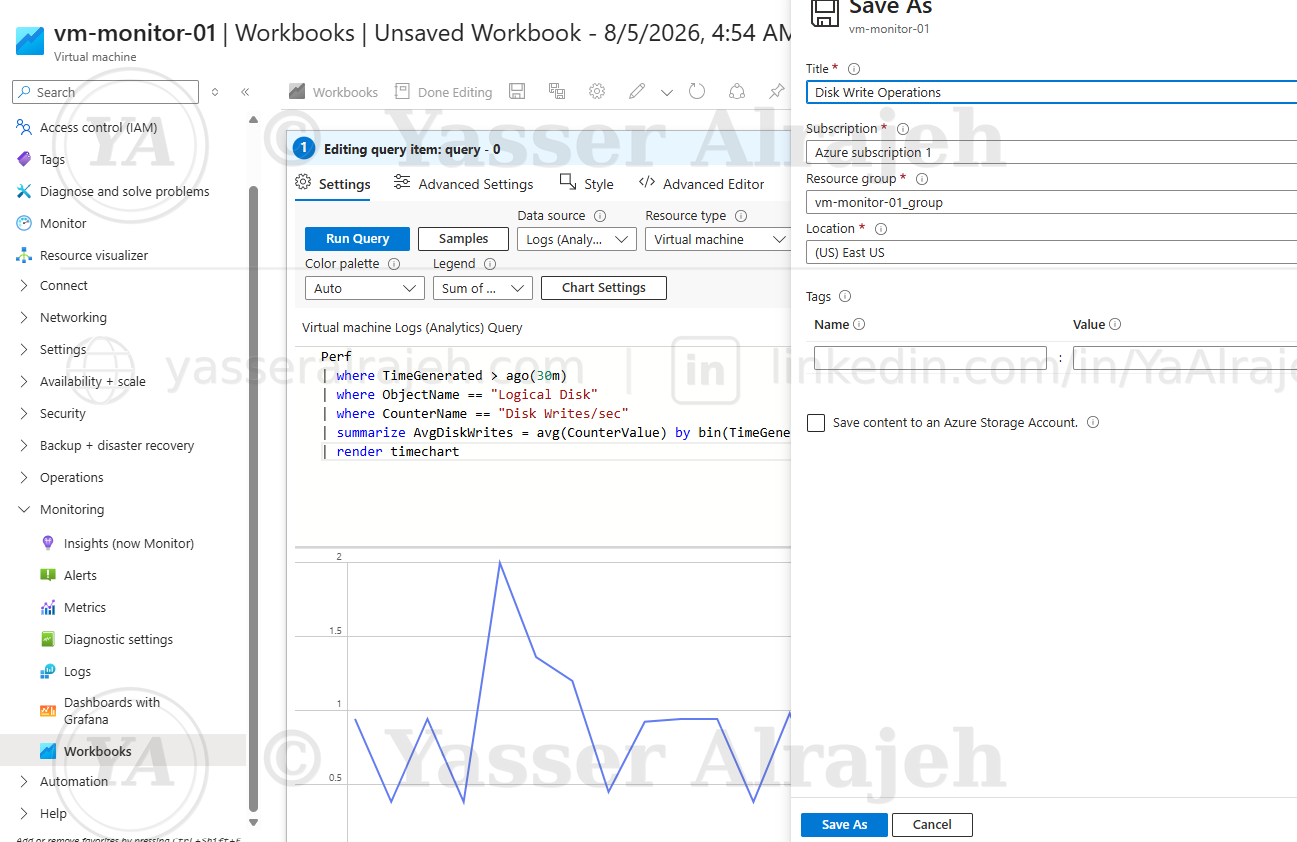

Disk write operations query saved as a Workbook chart ("Disk Write Operations").

7. Alert Configuration

An Azure Monitor alert rule was configured to detect abnormal CPU utilization.

Alert Configuration:

• Signal: Percentage CPU

• Aggregation: Average

• Threshold: 60%

• Evaluation Frequency: 1 Minute

Whenever CPU utilization exceeded the configured threshold, Azure Monitor automatically triggered the alert.

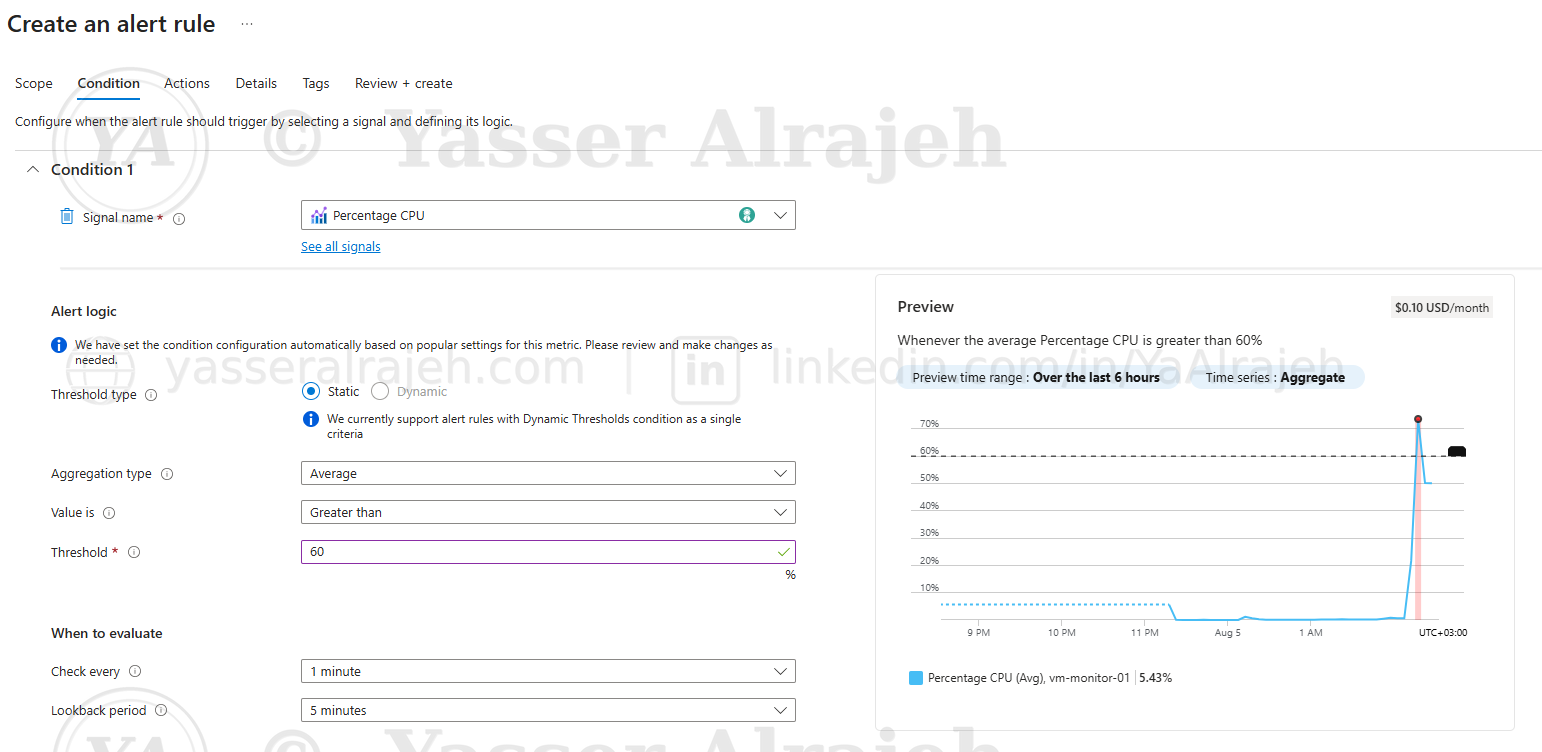

Defining the alert condition: Percentage CPU greater than 60%.

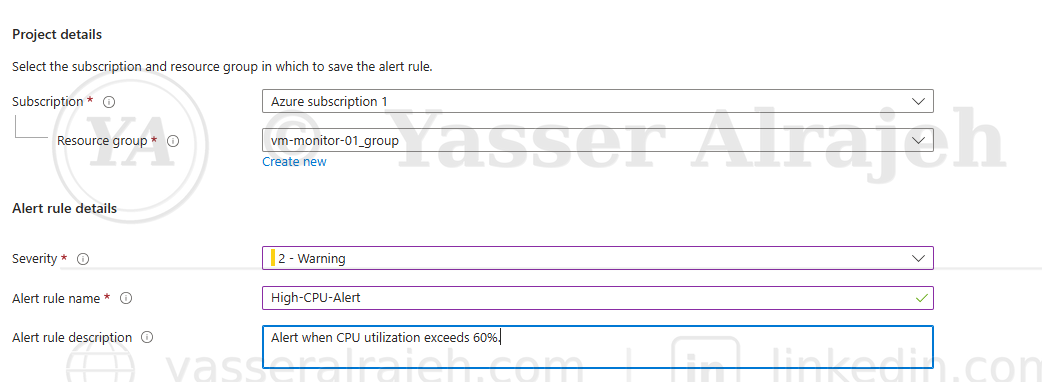

Alert rule details — High-CPU-Alert, severity Warning.

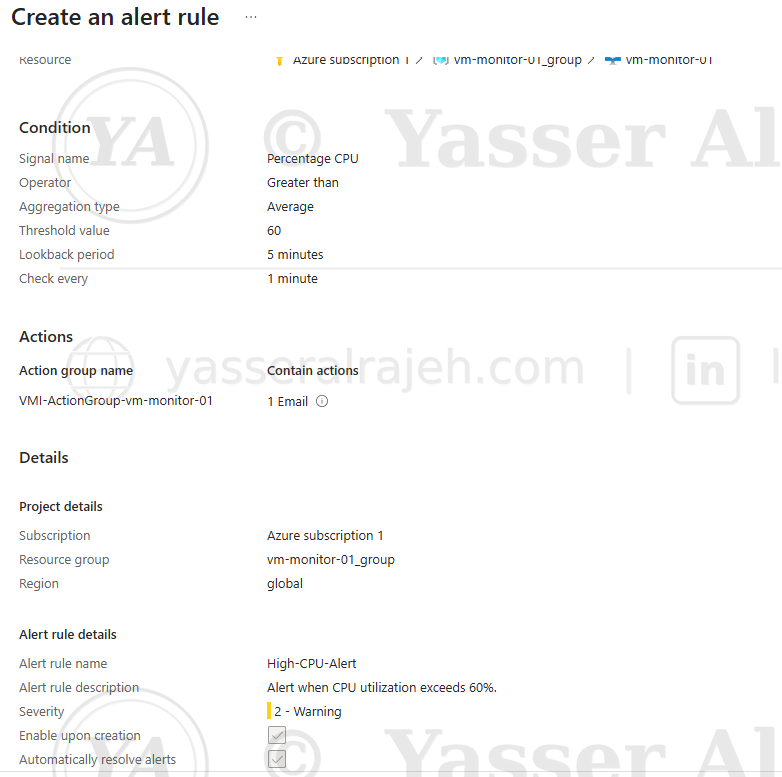

Review + create summary for the High-CPU-Alert rule.

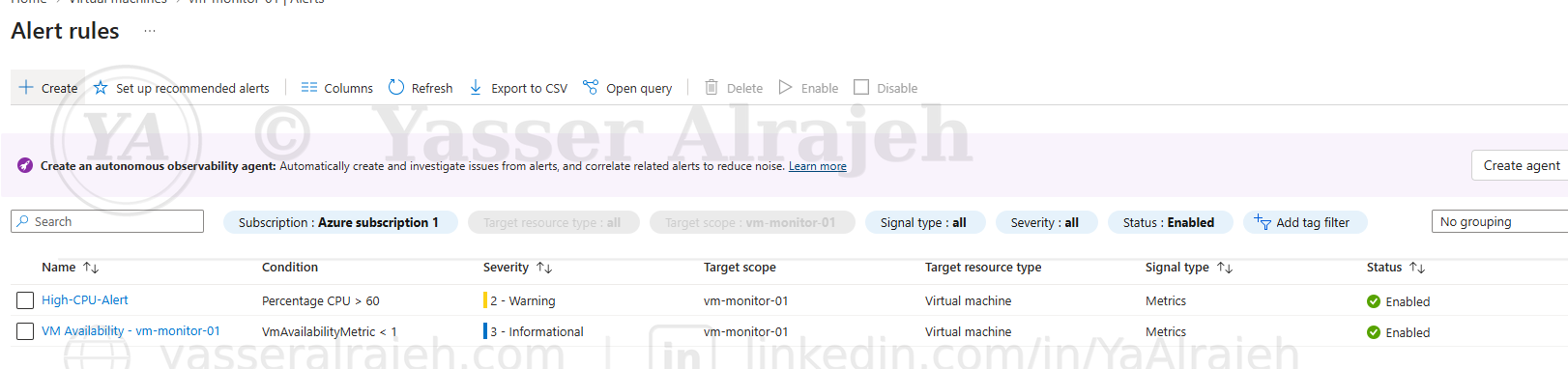

Alert rule enabled and active on vm-monitor-01.

8. Action Group

An Azure Action Group was configured to send email notifications whenever the alert rule was triggered.

This provides immediate notification to administrators during high CPU utilization events.

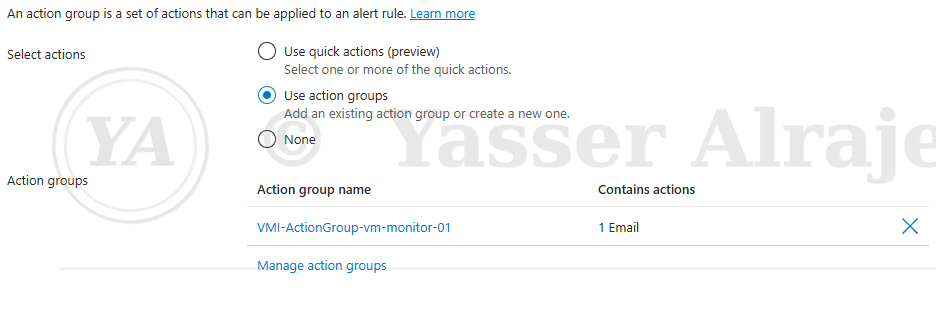

Action group VMI-ActionGroup-vm-monitor-01 configured with an email action.

9. Alert Validation

CPU load was intentionally generated on the Ubuntu virtual machine using:

stress-ng --cpu 2 --timeout 10m

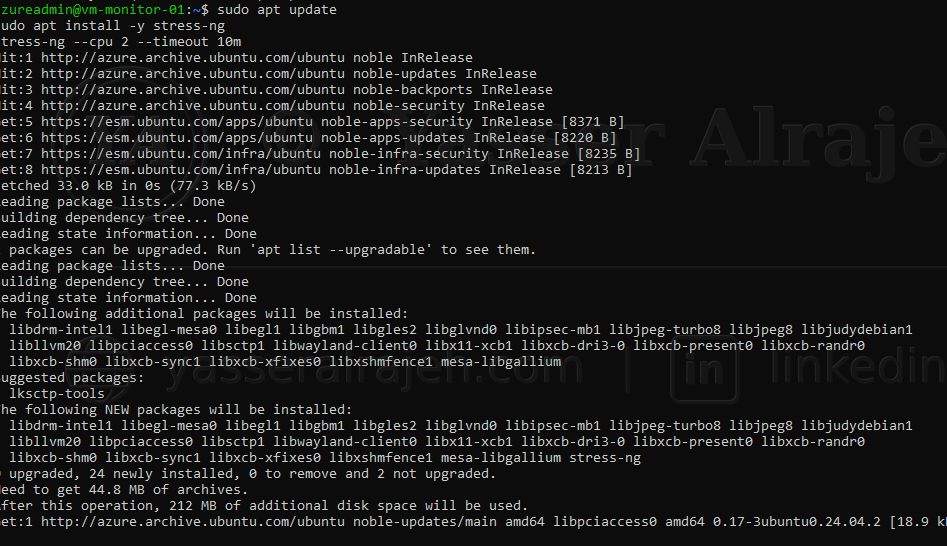

Installing and running stress-ng to generate CPU load on the Ubuntu VM.

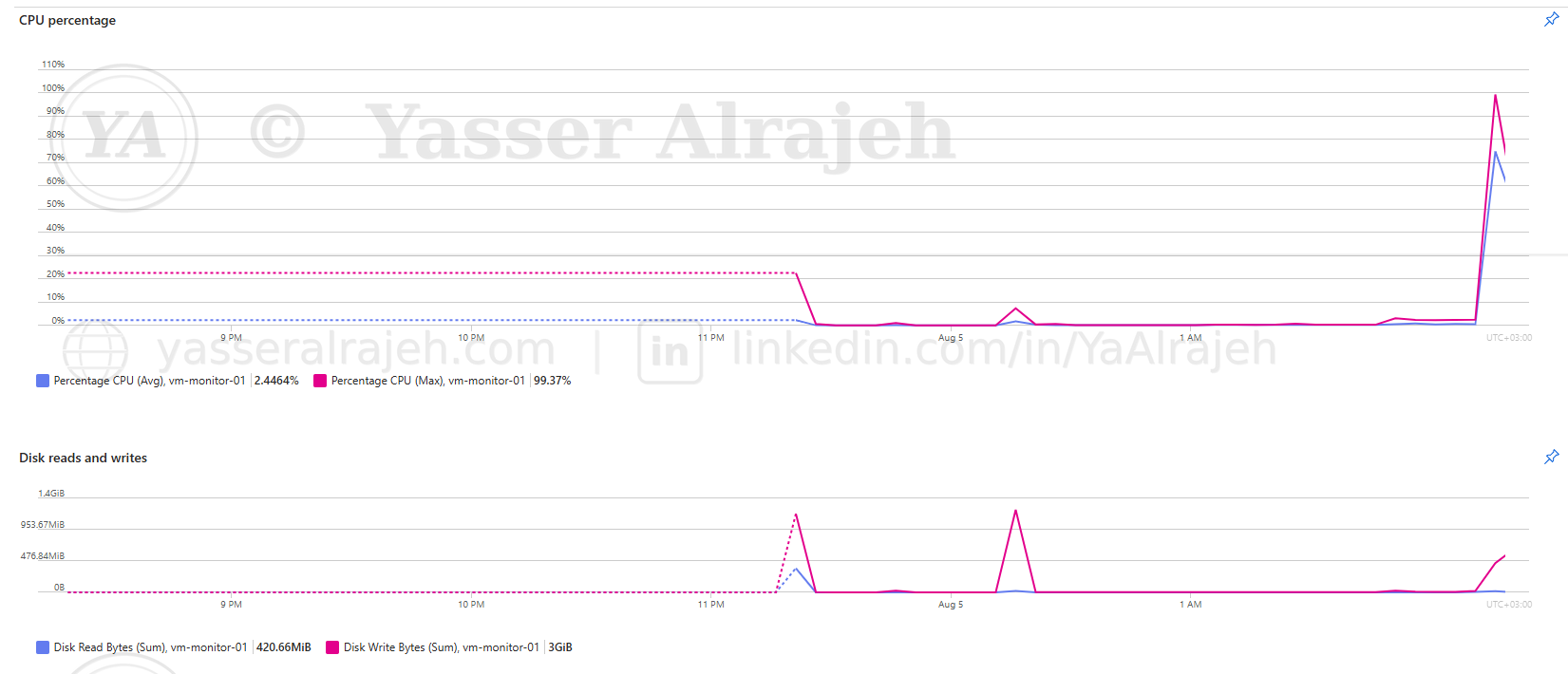

Metrics Explorer confirming the CPU spike to over 99% during the stress test.

Azure Monitor successfully:

• Detected the CPU spike.

• Triggered the High-CPU Alert.

• Executed the configured Action Group.

• Delivered an email notification.

Alert fired: High-CPU-Alert email notification received.

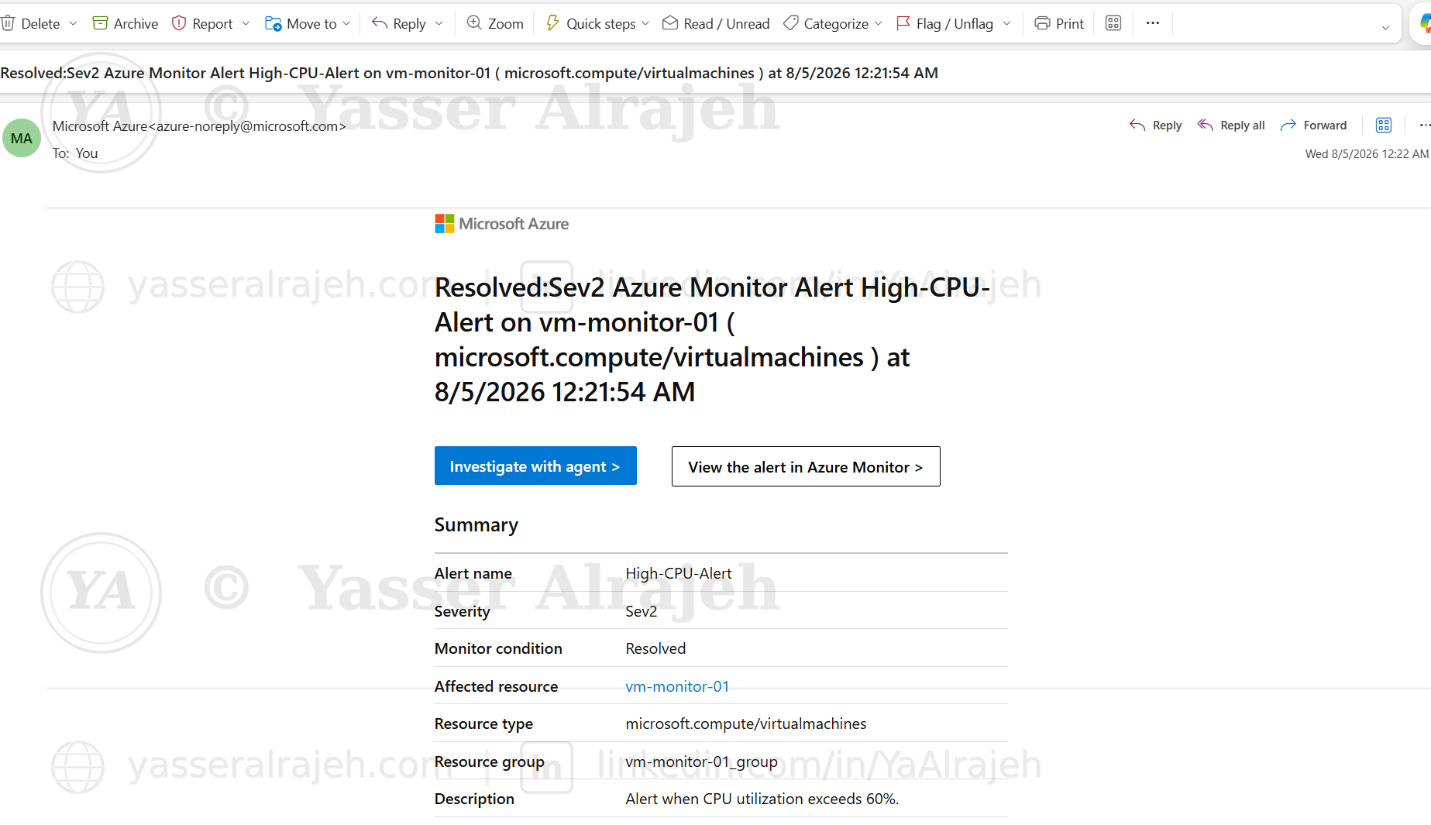

Alert resolved: High-CPU-Alert email notification once CPU returned to normal.

This confirmed that the complete monitoring pipeline was functioning correctly.

10. Results

The monitoring solution successfully provided:

• Continuous infrastructure monitoring

• Real-time performance analysis

• Centralized log collection

• KQL-based operational analysis

• CPU, Memory, and Disk performance charts

• Automated alert generation

• Email notification delivery

• End-to-end validation using CPU stress testing
