Azure Key Vault Secrets Management

Project Category	Cloud Security
Platform	Microsoft Azure
Core Technologies	Azure Key Vault, Azure CLI, Microsoft Entra ID, Linux
Project Focus	Secure secrets storage and controlled retrieval

Project Overview

Built a centralized secrets-management solution in Azure Key Vault and validated secure secret retrieval from an Ubuntu virtual machine through Azure CLI.

1. Business Scenario

Application credentials should not be stored in source code or local configuration files. This implementation moves API keys, database passwords, and connection strings into a controlled vault with authenticated access.

2. Project Objectives

• Deploy and configure Azure Key Vault.
• Store application secrets securely.
• Configure an Ubuntu VM and Azure CLI.
• Authenticate to Azure and retrieve authorized secrets.
• Validate access controls and successful secret retrieval.

3. Lab Environment

Component	Value
Cloud Platform	Microsoft Azure
Subscription	Azure subscription 1
Region	East US 2
Resource Group	rg-ycs-keyvault-lab-01
Key Vault	kv-ycs-01
Virtual Machine	vm-ycs-app-01
Operating System	Ubuntu Server 24.04 LTS
Authentication	Azure Device Login
Access Method	Native SSH
Management Tool	Azure CLI

4. Resources Created

Resource Type	Resource Name
Resource Group	rg-ycs-keyvault-lab-01
Azure Key Vault	kv-ycs-01
Linux Virtual Machine	vm-ycs-app-01
Secret	ApiKey
Secret	DatabasePassword
Secret	StorageConnectionString

5. Project Architecture

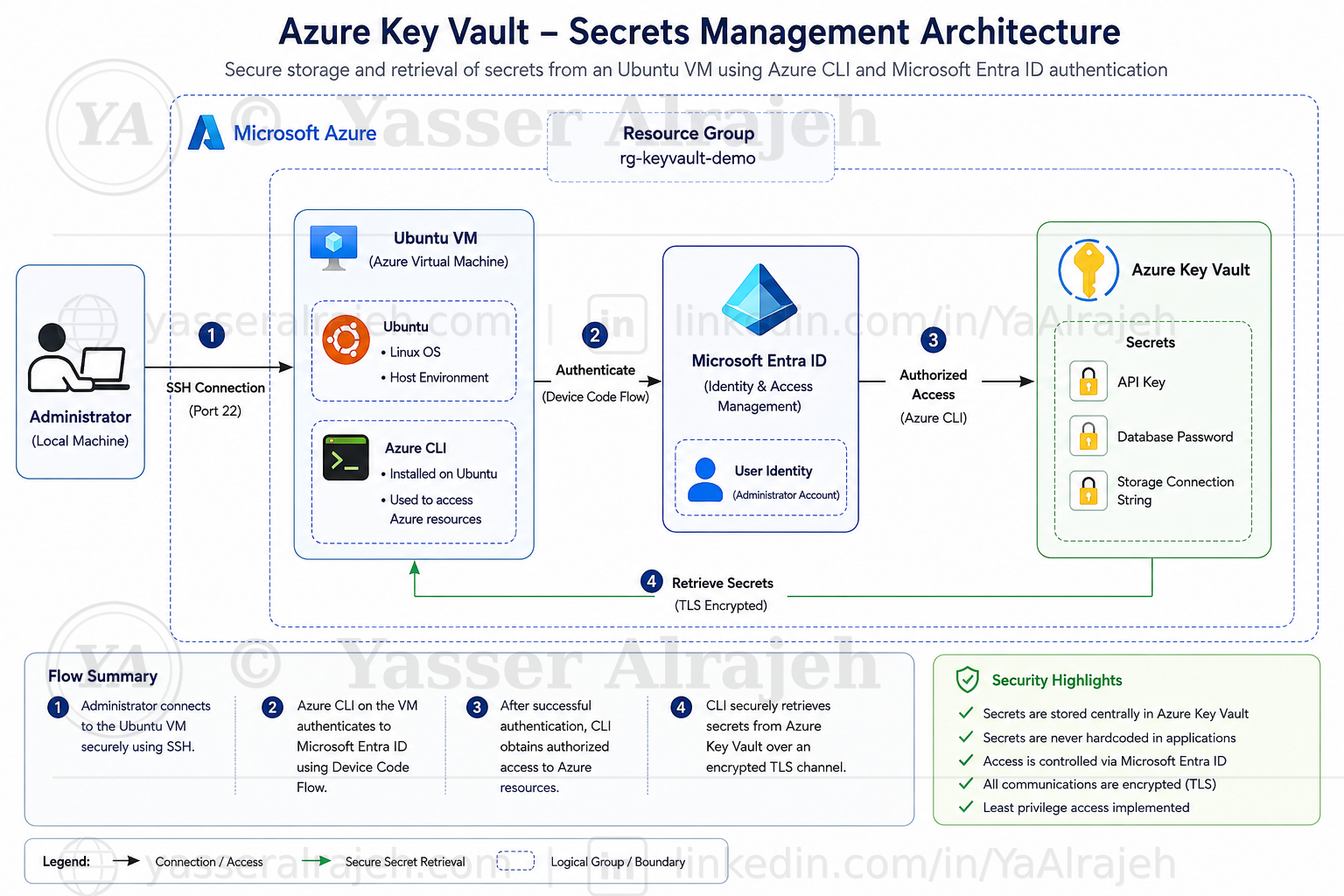

The architecture illustrates the implemented access flow: an administrator connects to the Ubuntu VM over SSH, Azure CLI authenticates the user through Microsoft Entra ID using Device Code authentication, and the authenticated CLI session retrieves the three configured secrets from Azure Key Vault over encrypted HTTPS/TLS communication.

Architecture — Ubuntu VM uses Azure CLI with Microsoft Entra user authentication to retrieve ApiKey, DatabasePassword, and StorageConnectionString from Azure Key Vault.

6. Technologies Used

• Microsoft Azure

• Azure Resource Manager

• Azure Key Vault

• Azure Virtual Machines

• Ubuntu Server 24.04 LTS

• Azure CLI

• OpenSSH

• Windows PowerShell

• Device Code Authentication

7. Security Features Implemented

The project demonstrates the following security practices:

• Centralized storage of application secrets in Azure Key Vault.

• Sensitive credentials kept outside application source code and local configuration files.

• Authenticated Azure CLI access using a Microsoft Entra user identity.

• Secret access performed only after successful authentication and authorization.

• Encrypted communication with Azure services over HTTPS/TLS.

• Secret values redacted from portfolio screenshots to prevent credential exposure.

8. Implementation Steps

8.1 Create the Resource Group

A dedicated Resource Group was created to organize all project resources under a single management boundary.

Property	Value
Resource Group	rg-ycs-keyvault-lab-01
Region	East US 2

Using a dedicated Resource Group simplifies administration, access control, cost tracking, and resource cleanup after the project is completed.

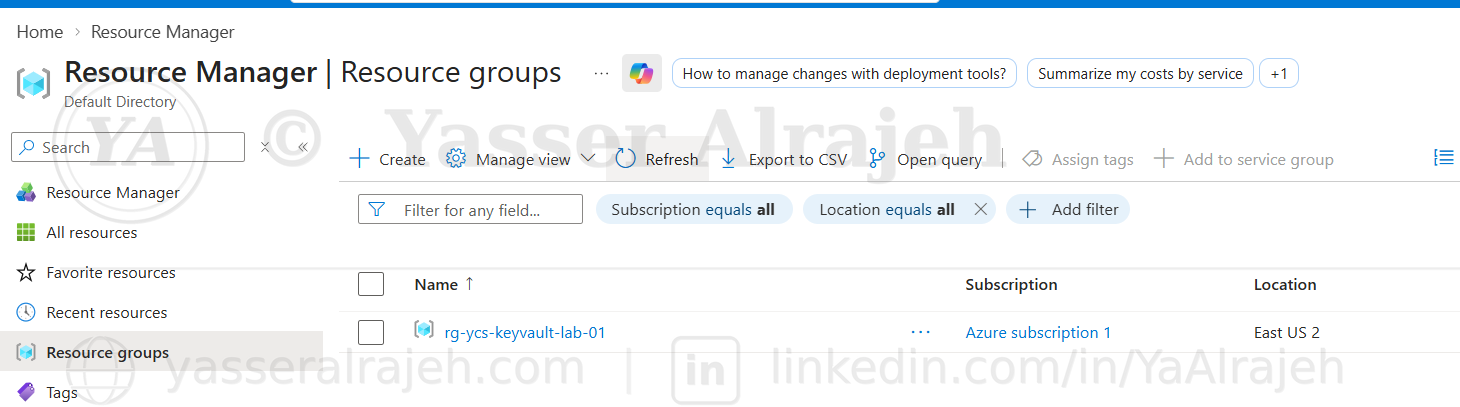

Resource Manager — Resource groups showing rg-ycs-keyvault-lab-01 in East US 2.

8.2 Deploy Azure Key Vault

A new Azure Key Vault was deployed successfully using Azure Resource Manager.

Property	Value
Deployment Name	kv-ycs-01
Resource Type	Key Vault
Resource Name	kv-ycs-01
Deployment Status	Successful

The Key Vault acts as a centralized and highly secure repository for storing application secrets, passwords, certificates, and cryptographic keys.

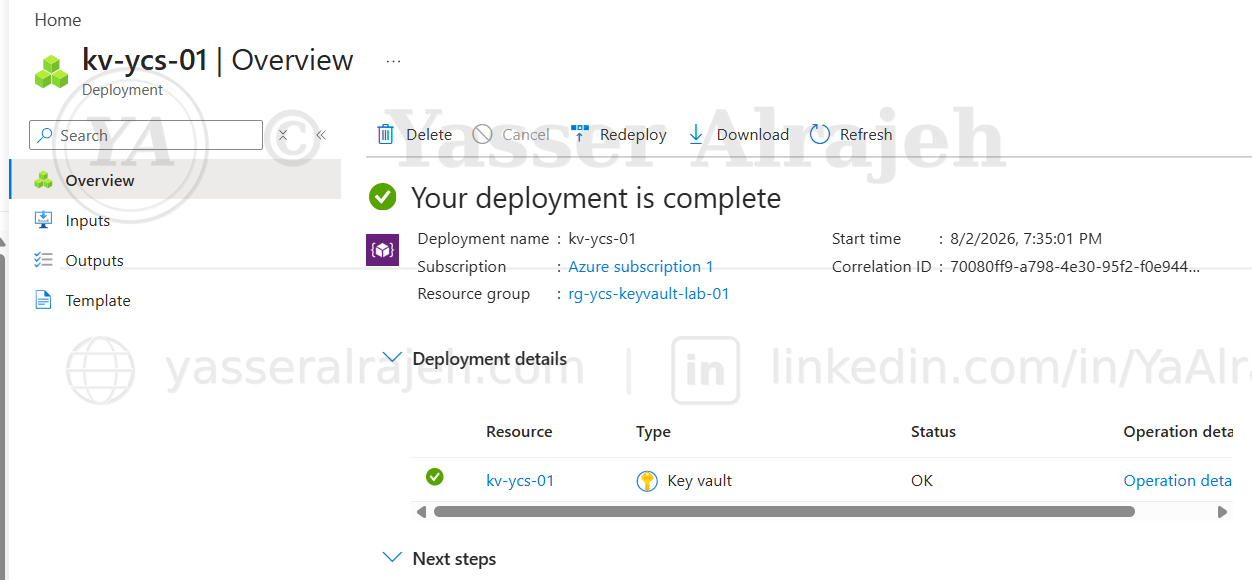

Deployment overview confirming kv-ycs-01 was deployed successfully to rg-ycs-keyvault-lab-01.

8.3 Create Application Secrets

Three application secrets were created inside Azure Key Vault.

Secret Name	Purpose
ApiKey	API authentication key
DatabasePassword	Database credentials
StorageConnectionString	Azure Storage connection string

All secrets are encrypted at rest by Azure Key Vault and protected through Azure security controls.

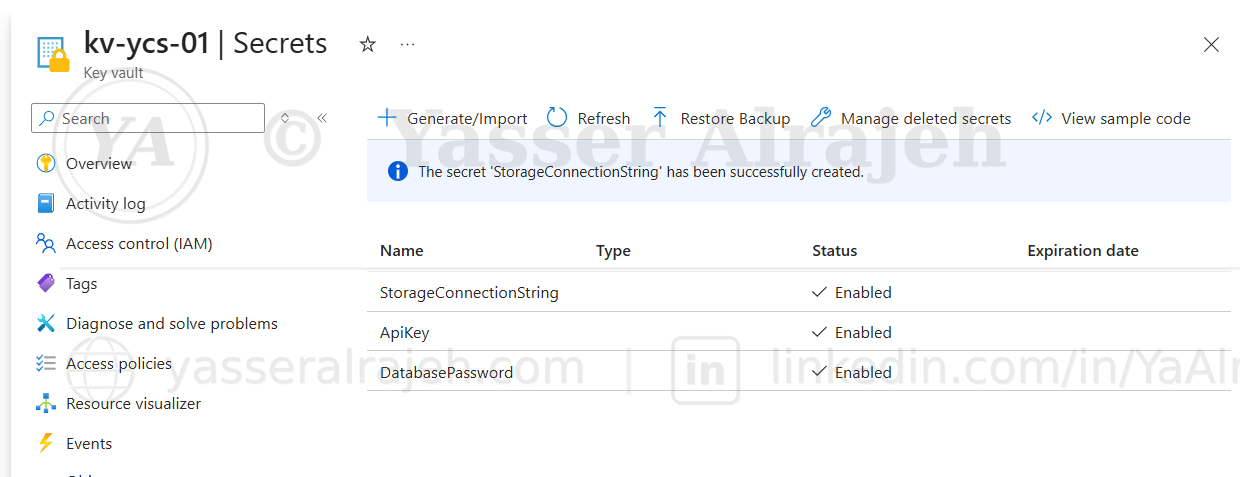

kv-ycs-01 Secrets pane confirming ApiKey, DatabasePassword, and StorageConnectionString were created and enabled.

8.4 Verify Secret Configuration

The StorageConnectionString secret was opened to verify its configuration.

Verified properties included:

• Secret Identifier

• Creation Time

• Update Time

• Secret Status

• Secret Value

• Enabled State

The secret was confirmed as enabled and ready for secure retrieval.

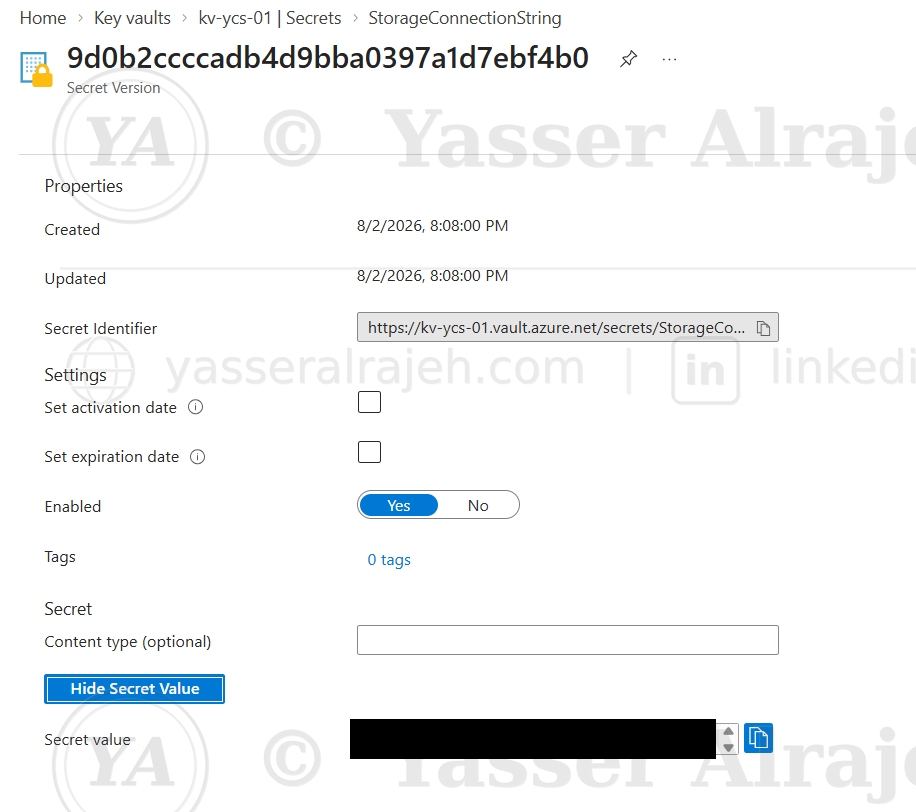

StorageConnectionString secret properties — confirmed enabled. The secret value is redacted for this portfolio.

8.5 Create Ubuntu Virtual Machine

An Ubuntu Server virtual machine was provisioned to simulate an application server accessing Azure Key Vault.

Property	Value
VM Name	vm-ycs-app-01
Operating System	Ubuntu Server 24.04 LTS
Region	East US 2
Authentication	Local User
Username	azureuser

The virtual machine represents a production workload that securely retrieves secrets from Azure Key Vault.

8.6 Configure SSH Connectivity

Azure automatically generated the SSH connection information.

Property	Value
Protocol	SSH
Port	22
Public IP	20.246.80.154
Username	azureuser

Azure verified that TCP port 22 was accessible through the Network Security Group. This validation confirms that remote administrative access is available.

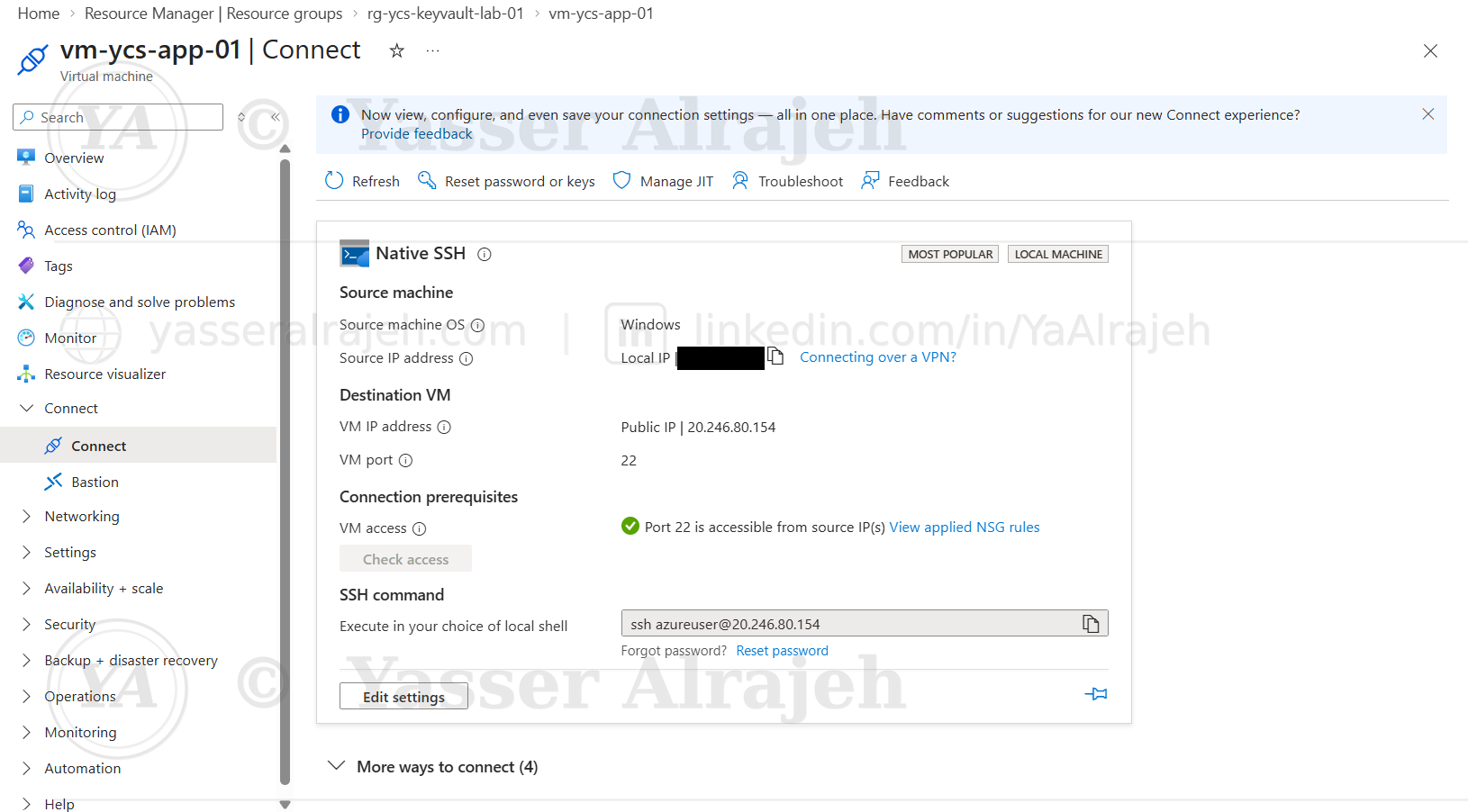

Native SSH connection blade — port 22 verified as accessible. The source (client) IP address is redacted for privacy.

8.7 Connect to the Linux Virtual Machine

A secure SSH session was established from Windows PowerShell.

Command executed:

ssh azureuser@20.246.80.154

After entering the local account password, the connection was successfully established. The administrator was presented with the Ubuntu login banner and shell prompt.

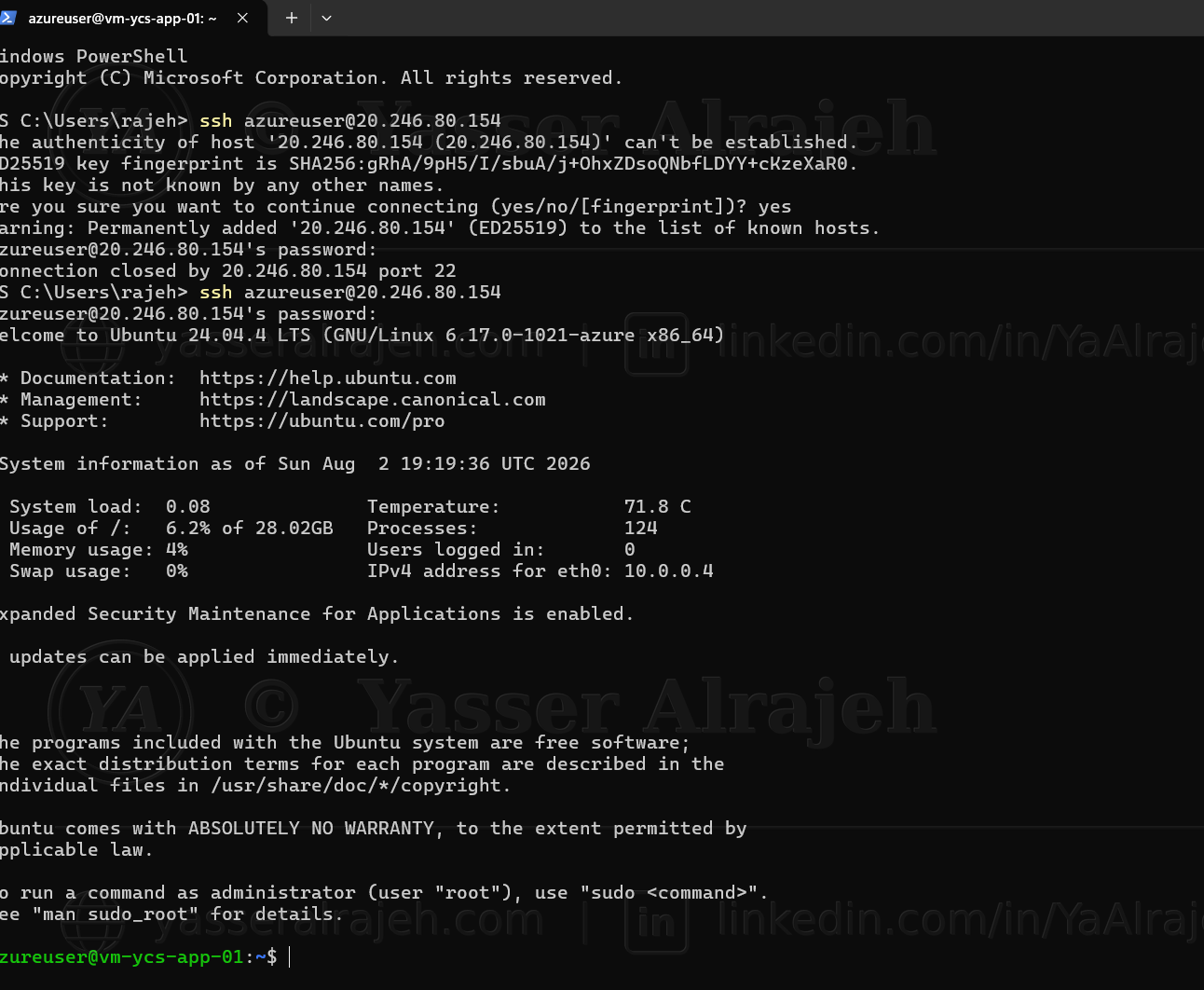

Windows PowerShell — SSH session established, Ubuntu 24.04.4 LTS login banner displayed.

8.8 Install Azure CLI

Azure CLI was installed inside Ubuntu to allow secure interaction with Azure resources.

The installation completed successfully and included:

• Package download

• Dependency installation

• Repository configuration

• Azure CLI version installation

Azure CLI provides a command-line interface for managing Azure resources directly from Linux.

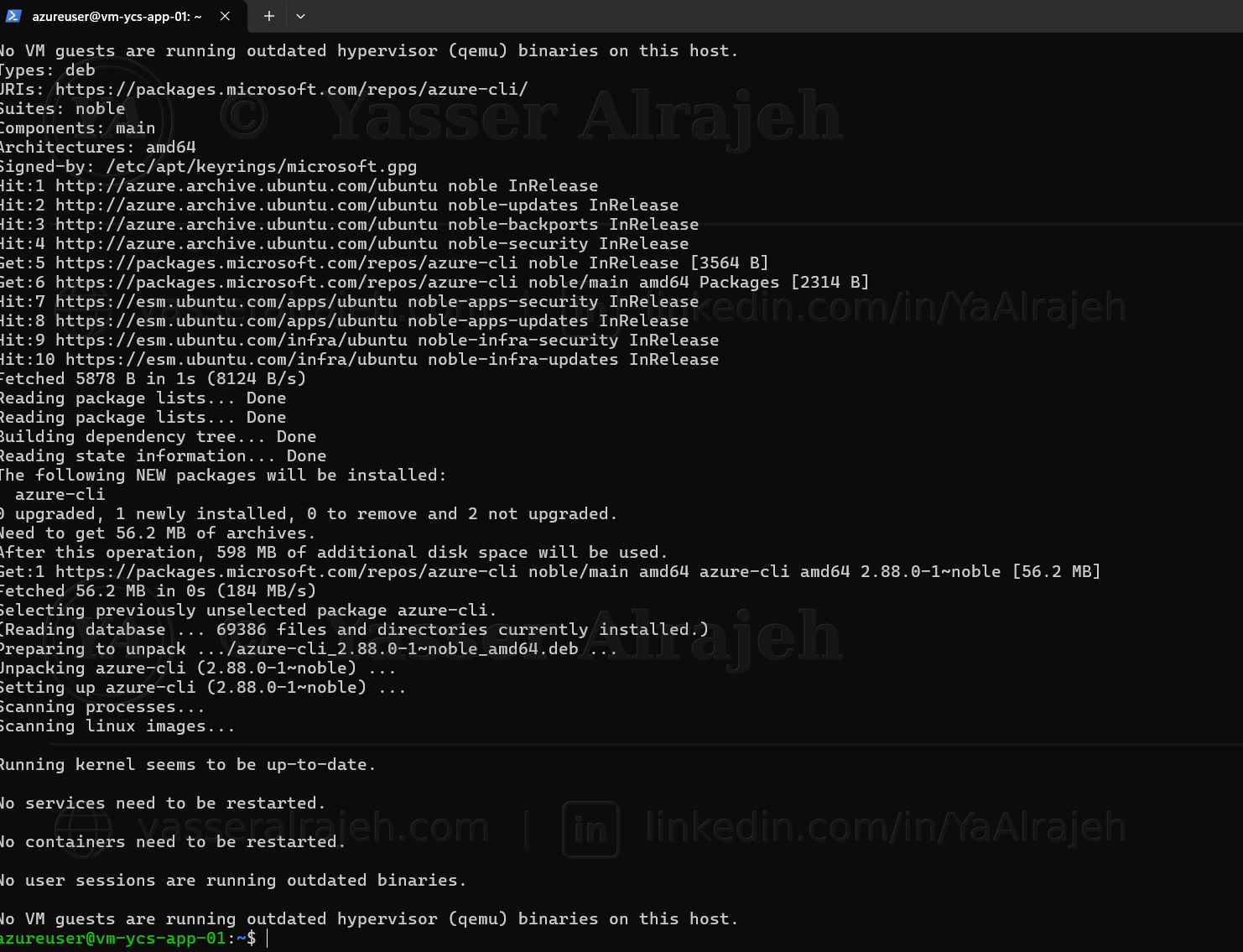

Azure CLI package installation completing successfully on the Ubuntu virtual machine.

8.9 Authenticate Azure CLI

Azure CLI authentication was initiated using Device Code authentication.

Command executed:

az login --use-device-code

Azure generated a temporary authentication code and instructed the user to visit Microsoft's device login portal. This authentication method is commonly used for systems without a graphical web browser.

az login --use-device-code — Azure generates a one-time device
code (redacted here since it grants sign-in access).

8.10 Complete Microsoft Authentication

The authentication code generated by Azure CLI was entered into Microsoft's authentication page.

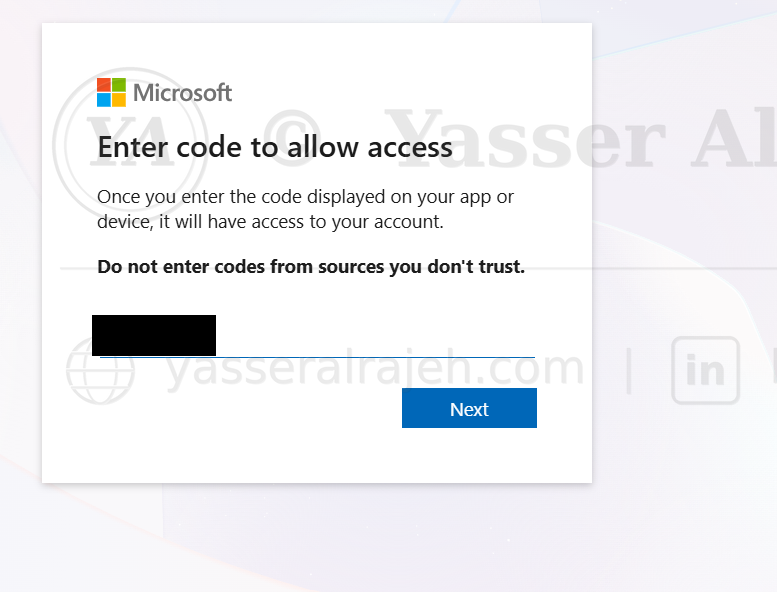

Microsoft device login page — entering the one-time code (redacted).

After successful authentication, Azure CLI established an authenticated session using the Microsoft Entra user identity. The CLI could then access Azure resources according to the permissions assigned to that identity, without storing the user password in the terminal session.

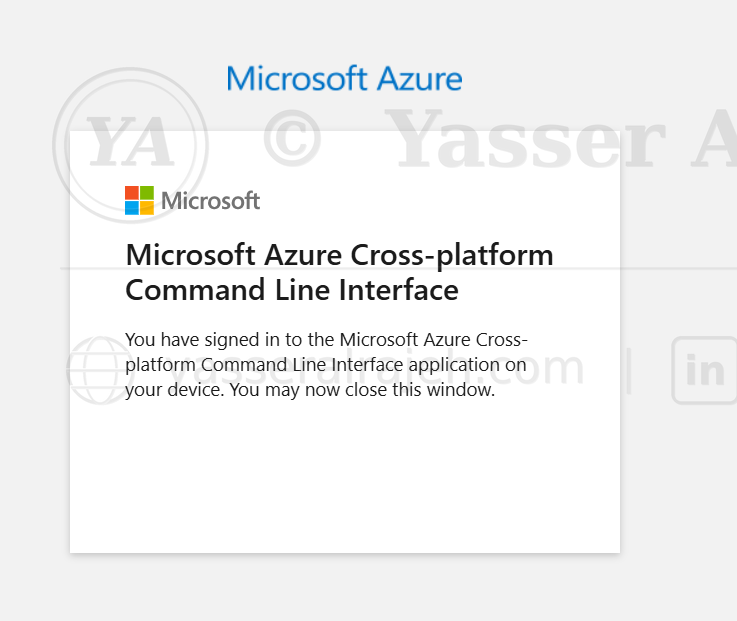

Microsoft Azure CLI confirming successful sign-in.

9. Azure CLI Operations, Validation, and Project Outcome

9.1 Verify Azure Authentication

After completing the Device Code authentication process, the active Azure subscription was verified using Azure CLI.

Command executed:

az account show

Purpose

The command displays information about the currently authenticated Azure account and confirms that Azure CLI is connected to the correct subscription.

Verification Results

The following information was successfully returned:

• Active Azure Subscription

• Subscription ID

• Tenant ID

• Tenant Name

• User Account

• Azure Cloud Environment

• Subscription State

This validation confirms that Azure CLI is authenticated with the intended Microsoft Entra user identity and connected to the expected Azure subscription.

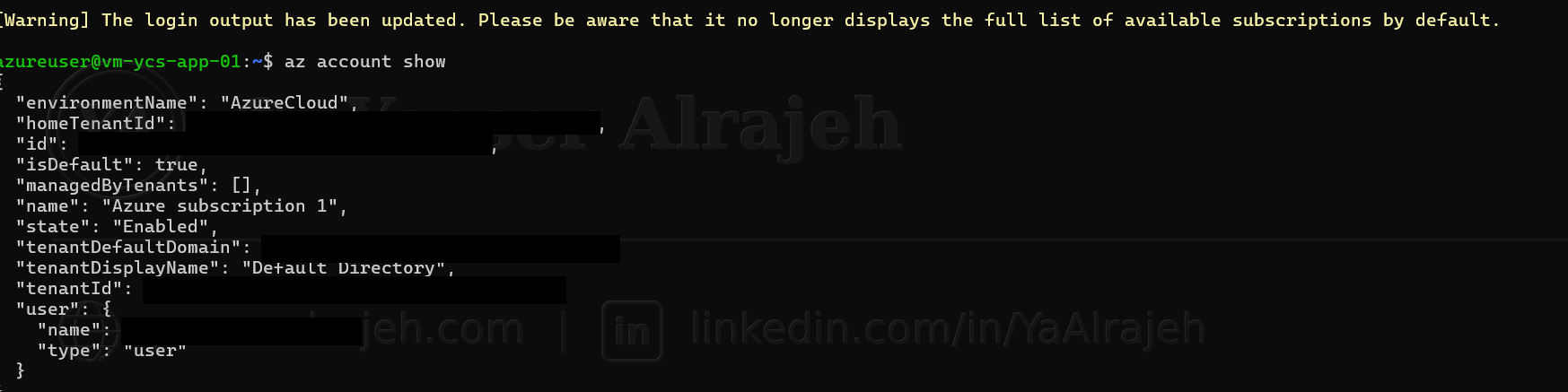

az account show — subscription and tenant details confirmed
(tenant/subscription IDs and account email redacted for
privacy).

9.2 List Available Secrets

After authentication was verified, Azure CLI was used to display all secrets stored inside Azure Key Vault.

Command executed:

az keyvault secret list \
--vault-name kv-ycs-01 \
--output table

Result

Azure CLI successfully returned the following secrets:

Secret

ApiKey

DatabasePassword

StorageConnectionString

This confirmed that:

• The Key Vault exists.

• Azure CLI can successfully communicate with Azure Key Vault.

• The authenticated account has sufficient permissions to enumerate stored secrets.

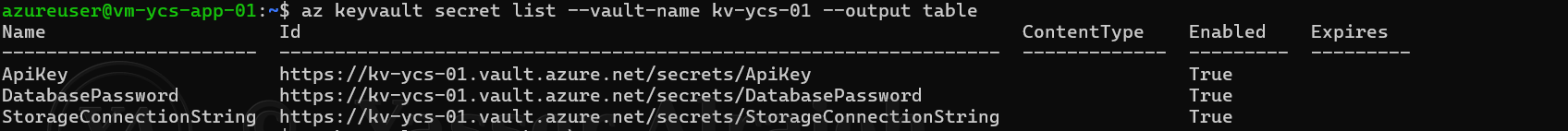

az keyvault secret list — all three secrets returned with their
status confirmed as enabled.

9.3 Retrieve the API Key

The API key stored inside Azure Key Vault was retrieved using Azure CLI.

Command executed:

az keyvault secret show \
--vault-name kv-ycs-01 \
--name ApiKey \
--query value -o tsv

Purpose

Instead of storing API credentials inside application source code, Azure Key Vault securely stores the secret and returns it only after successful authentication.

Result

Azure CLI successfully returned the stored API key.

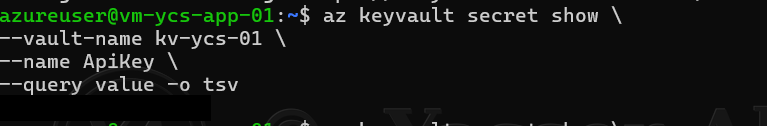

az keyvault secret show — ApiKey retrieved successfully. The
returned value is redacted for this portfolio.

9.4 Retrieve the Database Password

The database password was retrieved directly from Azure Key Vault.

Command executed:

az keyvault secret show \
--vault-name kv-ycs-01 \
--name DatabasePassword \
--query value -o tsv

Purpose

This command demonstrates secure retrieval of database credentials without embedding passwords inside application configuration files.

Result

The password was successfully returned by Azure Key Vault after verifying the user's identity and permissions.

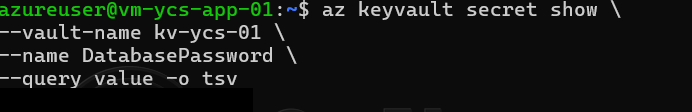

az keyvault secret show — DatabasePassword retrieved
successfully. The returned value is redacted for this
portfolio.

9.5 Retrieve the Storage Connection String

The final secret retrieved from Azure Key Vault was the storage connection string.

Command executed:

az keyvault secret show \
--vault-name kv-ycs-01 \
--name StorageConnectionString \
--query value -o tsv

Purpose

Applications commonly use storage connection strings to access Azure Storage Accounts. Storing them in Azure Key Vault prevents accidental exposure and simplifies credential management.

Result

Azure CLI successfully retrieved the connection string stored in the Key Vault.

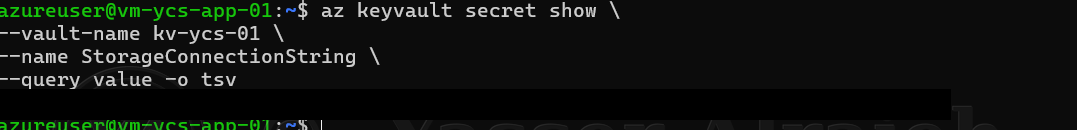

az keyvault secret show — StorageConnectionString retrieved
successfully. The returned value is redacted for this
portfolio.

10. Implementation Validation and Security Outcomes

The completed lab was validated across deployment, authentication, connectivity, and secret retrieval.

Validation Item	Status
Dedicated Resource Group	Completed
Azure Key Vault Deployment	Completed
Ubuntu VM and SSH Connectivity	Completed
Azure CLI Installation	Completed
Microsoft Entra User Authentication	Completed
Azure Subscription Verification	Completed
Secret Enumeration	Completed
Secure Secret Retrieval	Completed

Security Outcomes

• API keys, database credentials, and storage connection strings were centralized in Azure Key Vault rather than stored in application code.

• Secret retrieval required an authenticated Microsoft Entra user identity with sufficient permissions.

• Azure CLI successfully retrieved all three configured secrets from the Ubuntu VM.

• Sensitive secret values and identity details were redacted from portfolio evidence.
